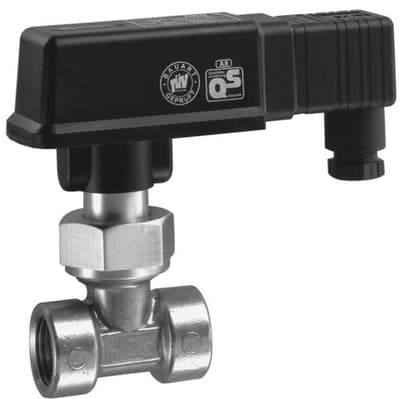

Type TCQ001 Flow Control Switch - Normally Open or Normally Closed Contact
Brand: Burkert Fluid Control Systems
The flow control switch is suitable for liquids as normally open or normally closed contact. The switching process is triggered by a reed contact. The flow moves the magnet, which is located on a rocker bar. The switching point is adjustable.
The flow control switch works reliably even under difficult conditions with low pressure drop. The switching process is well repeatable.
Features- Adjustable switching point
- Low pressure loss
- Reliable under difficult conditions
- For liquid
Specifications
Body Material
- Brass
Rocker Bar
- PPO (PPE/PA GFN3)
Repeatability
- ± 15 %
Nominal Pressure
- 25 bar
Operating Temperature
- Maximum, 110° C
Environmental Protection
- IP65
Electrical Connection
- Cable Plug DIN 43650 Form A
