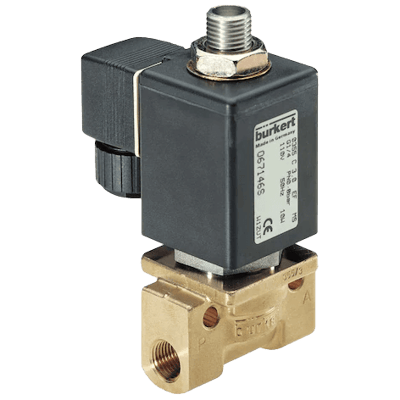

0355 3/2-Way Solenoid Valve

Brand: Burkert Fluid Control Systems
Does not ship to United States

Direct-acting plunger solenoid Type 355 for neutral gases and liquids. Also suitable for high temperatures, such as hot water, hot air, steam.
Features
  • Seat valve direct acting
  • Media temperature 0° to 180° C (0° to 356° F)
  • Push-over solenoid system
  • For gases and fluids

Specifications

Ambient Temperature Range

  • Maximum

Approvals & Certifications

  • CSA
  • UL
  • UR

BSP Connection

  • G 1/4” Female
  • G 3/8” Female

Consumption

  • Power Consumption (DC): 12 W
  • Power Consumption (Hold AC): 16 VA / 10 W (Hot Coil)
  • Power Consumption (Inrush AC): 35-40 VA

Duty Cycle

  • 100 % Continuous Rating

Electrical Connectors

  • Tag Connector According to DIN EN 175301-803 Form A for Cable Plug Typical 2508

Electrical Contacts

  • Normally Closed

Enclosure, Body Material

  • 303 Stainless Steel, 1.4305
  • 316Nb Stainless Steel, 1.4581
  • Brass

Environmental Protection

  • IP65 with Cable Plug

Insulation

  • Coil Insulation Class H

Internal Part Material

  • Stainless Steel

Materials of Construction

  • Coil Material: Epoxy
  • Stopper, Plunger: 430FR Stainless Steel

Metric Connection

  • M14 x 1.5 Male

Mounting Position

  • Preferably with Actuator Upright

Nut & Bolt Material

  • Locknut: Steel (Thick-Film Passivated According Rohs)

Orifice Size

  • 0.078” to 0.157” (2 to 4 mm)

Pressure Range

  • psi: 0 to 232 (kPa: 0 to 1,600, bar: 0 to 16)

Process Temperature

  • EPDM: -40° to 130° C (-40° to 266° F)
  • FKM: 0° to 130° C (32° to 266° F)
  • NBR: -10° to 90° C (14° to 194° F)
  • PTFE: -40° to 180° C (-40° to 356° F)

Ring Material

  • Shading Ring: Copper - MS Version (AC)
  • Shading Ring: Silver - Stainless Steel Version (AC)

Seat / Seal Material

  • Seal: EPDM (Media: Oil & Fat-Free Fluids)
  • Seal: FKM (Media: Per-Solutions, Hot Oils with Additives)
  • Seal: NBR (Media: Neutral Fluids, Hydraulic Oil, Oil without Additives)
  • Seal: PTFE (Media: Steam, Organic Solvents)
  • Valve Seat: 303 Stainless Steel, 1.4305

Solenoid Type

  • 3/2-Way

Spring Material

  • 301 Stainless Steel, 1.4310

Tolerance

  • Voltage Tolerance: ± 10 %

Voltage

  • 24 Vdc
  • 24-230 V / 50 Hz
