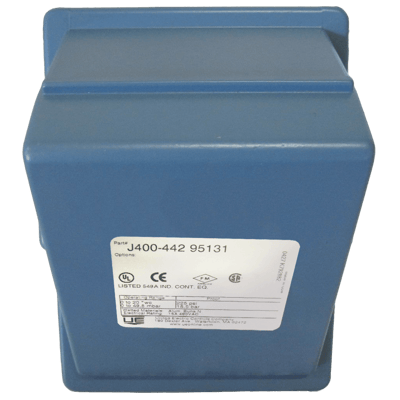

400 Series Type J400 Models 440 to 443 Pressure Switch
Brand: United Electric Controls Ltd
The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities.
Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions.
A wide variety of microswitch and process connection options, along with a weather-tight enclosure, make the 400 Series an ideal choice for most ordinary location applications. Its worldwide use is assured with approvals and certifications to agency standards.
Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions.
Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.
Features- Epoxy-coated enclosure designed to meet enclosure Type 4X
- Wide variety of pressure sensors and materials
- Setting via reference dial or hex screw adjustment
- FM Approved
Specifications
Adjustment Type
- Captive Clamp Screws
- Factory Set (Pre-Set)
- Set Point Adjustment
Ambient Temperature Range
- -40° to 71° C (-40° to 160° F), Set Point Typically Shifts less than 1 % of Range for a 28° C (50° F) Ambient Temperature Change
Applications
- Energy Generation Including Pumps
- Industrial Gas Production
- Pulp & Paper
- Turbines & Compressors
- Water & Wastewater Treatment
Approvals & Certifications
- ATEX Ex directive (94/9/EC) II 1 G Ex ia IIC T6 Ga Tamb: -50° to 60° C (-58° to 140° F)
- CE
- CSA C22.2 No. 14, File # E42272
- FM Class 3545
- GOST-R 51330.0, 51330.1, 51330.10 & 51330.14
- Low Voltage Directive (LVD) 2006/95/EC
- PED: 97/23/EC
- UL (C,US) 508
Approvals & Certifications
- ISO 9001
Deadband
- Inches WC: 0.07 to 2
- psi: 0.002 to 0.07 (kPa: 0.02 to 0.5, Mbar: 0.2 to 5.0)
Diaphragm Material
- Buna-N
Electrical Connectors
- 7/8” Hole to 1/2” NPT Female Watertight Conduit Fitting
- One 3/4” NPT
- Screw Terminal
- Two 7/8” Diameter Knockouts
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 15 A at 125/250/480 Vac Resistive
Enclosure Finish
- Epoxy Powder-Coated
Enclosure, Body Material
- Gasketed Die Cast Aluminum
Environmental Protection
- Intrinsically Safe
- IP66
- NEMA 4X
- Weathertight
Mounting
- Hole
- Pipe
- Surface
Name Plate, Tag Material
- Stainless Steel, Paper ID Tag & Wire Attachment
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Buna-N
Overpressure & Static Pressure Limits
- Over Range Pressure - psi: 3 (kPa: 20.7, bar: 0.2)
Process Connection Material
- Aluminum
Proof Pressure
- psi: 225 (kPa: 1,551, bar: 15.5)
Repeatability
- Set Point Repeatability: ± 1 % of Full Scale Range
Set Point - Decreasing
- bar: 0 to 0.2
- Inches WC: 0 to 80
- kPa: 0 to 20
- psi: 0 to 2.9
Set Point - Increasing
- Inches WC: 0 to 80
- kPa: 0 to 19.93
- mbar: 0 to 199.1
- psi: 0 to 2.9
Shock
- Set Point Repeats after 15 G, 10 millisecond Duration
Storage Temperature
- -54° to 71° C (-65° to 160° F)
Switch Type
- SPDT
System Pressure
- bar: 0.2
- kPa: 20.7
- mbar: 206.8
- psi: 3
Vibration
- Set Point Repeats after 2.5 G, 5 to 500 Hz
