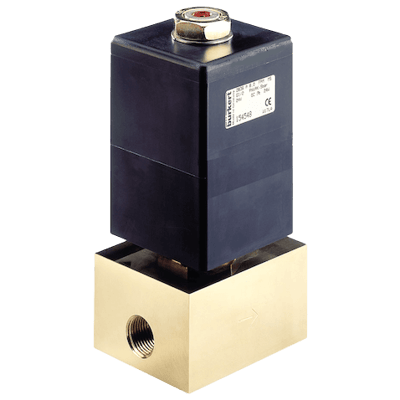

2836 2/2-Way Solenoid Control Valve

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

The direct-acting solenoid control valve, Type 2836, works as an electromagnetically actuated control valve in applications with relatively high flow rates. The valve is normally closed.

Valve control takes place through the control electronics of Type 8605, which converts an Analog input signal into a PWM² (pulsewidth modulation) signal.
Features
  • Direct-acting, normally closed
  • DN 0.11" to 0.47" (3 to 12 mm)
  • Port connection 1/2” or 3/4”

Specifications

Ambient Temperature Range

  • 55° C (131° F) - Max.

Approvals & Certifications

  • CE

BSP Connection

  • G 1/2” Female
  • G 3/4” Female

Consumption

  • Power: 24 W, Max.

Current

  • Coil Current: 1,100 mA - Max.

Duty Cycle

  • 100 % Duty Cycle Continuous Rating

Electrical Connectors

  • Cable Plug Typical 2508 According to DIN EN 175301-803 Form A

Electrical Contacts

  • Normally Closed

Enclosure, Body Material

  • Brass
  • Stainless Steel

Environmental Protection

  • IP65

Flow Rate

  • 270 to 2,700 QNn (L/min)
  • Water: 0.25 to 2.5 Kvs (m³/hour)

Frequency

  • PWM Frequency: 150 to 180 Hz

Hysteresis

  • < 5 %

Media

  • Neutral Gases & Liquids

Mounting Position

  • Preferably with Actuator Upright

NPT Connection

  • 1/2” NPT Female
  • 3/4” NPT Female

Operating Pressure

  • psi: 0 to 362.6 (kPa: 0 to 2,500, bar: 0 to 25) - Max.

Orifice Size

  • 0.11” to 0.47” (3 to 12 mm)

Power Supply

  • 24 Vdc

Pressure Range

  • psi: 0 to 362.6 (kPa: 0 to 2,500, bar: 0 to 25) - Overpressure with Respect to Atmospheric Pressure

Process Temperature

  • -10° to 90° C (14° to 194° F)

Ratio

  • Span - 1:25

Repeatability

  • < 1 % of Full Scale

Seat / Seal Material

  • Seal: FKM

Sensitivity

  • < 0.5 % of Full Scale

Solenoid Type

  • 2/2-Way

Viscosity

  • 21 mm²/sec (21 cSt) - Max.
