6511 5/2-Way Solenoid Valve

Brand: Burkert Fluid Control Systems
Does not ship to Virginia, United States

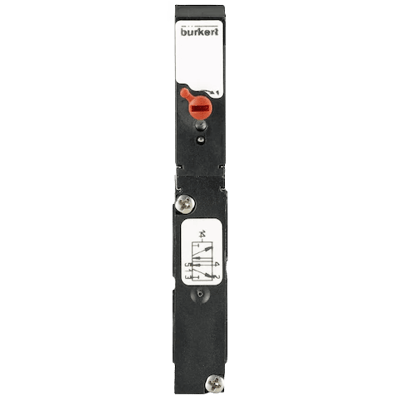

Type 6511 consists of the pilot flipper solenoid valve Type 6144 and a pneumatic seat valve.

The Flipper principle allows switching of high pressures with low power consumption and with short switching times. All valves are equipped with manual override as a standard.

Type 6511 is extendable and preferably with a cable plug at the back of the valve island, Type 8640, and with the plug connection at the front of the valve block in the pneumatic control actuators.

Specifications

Actuator Type

  • Pneumatic

Ambient Temperature Range

  • 0° to 55° C (32° to 131° F)

Approvals & Certifications

  • VDE 0580

BSP Connection

  • G 1/8”

Duty Cycle

  • Continuous Operation 100 % ED

Electrical Connectors

  • Pneumatic Module: Typical MP02 with M5
  • Push-In Connection [Diameter (4 mm)]
  • Rectangular Plug, 2-Pin with Raster (5.08 mm)

Enclosure, Body Material

  • Polyamide (PA)
  • Polyphenylene Sulfide (PPS)

Environmental Protection

  • IP40

Flow Rate

  • Air: 130 QNn (L/min)

Media

  • Dry Compressed Air
  • Lubricated Oil Free
  • Neutral Gases (5 μm Filter Recommended)

Mounting

  • DIN/EN Rail 50045
  • Manifold Mounting on Wall

Mounting Position

  • Preferably with Actuator Upright

NPT Connection

  • 1/8” NPT

Operating Voltages

  • 24 Vdc

Orifice Size

  • 0.09” (2.50 mm)

Override

  • Manual Override

Power

  • Nominal: 0.8 W

Pressure Range

  • psi: 36.26 to 145 (kPa: 250 to 1,000, bar: 2.5 to 10)

Process Temperature

  • 0° to 50° C (32° to 122° F)

Response Time

  • Closing: < 10 milliseconds - According to ISO 12238
  • Opening: < 15 milliseconds - According to ISO 12238

Seat / Seal Material

  • Seal: FKM
  • Seal: NBR

Solenoid Type

  • 5/2-Way

Tolerance

  • Voltage: ± 10 %
