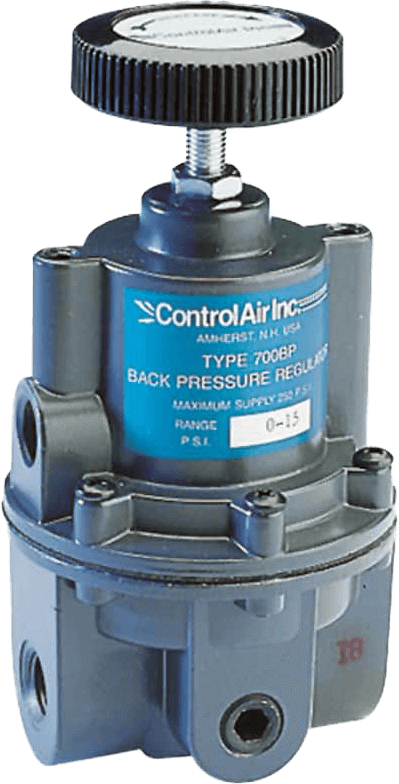

Type 710BP Precision Back Pressure Regulator
Brand: ControlAirThe Type 710BP Back Pressure Regulator is a high flow, highly accurate pneumatic relief valve with an adjustable set point.
It's primary function is to provide protection against over pressurization in the downstream portion of a pneumatic system.
This precision unit is capable of handling flows up to 50 SCFM.
A rolling diaphragm provides the sensitivity that causes the Type 710BP to vent to atmosphere in response to the slightest upstream changes.
Features- Provides Quick Response to Controlled System Pressure Variation
- Flows up to 50 SCFM - Depending on Set Point Pressure and Port Size
- Venturi Type Velocity Pressure Tube Adjusts Main Control Valve Opening in Accordance with Velocity Pressure Variations of Flow from Controlled System
- Unit can be Disassembled and Serviced Without Removing From the Air Line
Specifications
Brand
Port Size NPT
- 1/4”
- 3/8”
- 1/2”
Output Range
- 0-2 psi / 0-0.14 bar
- 0-10 psi / 0-0.7 bar
- 0-15 psi / 0-1 bar
- 0-30 psi / 0-2 bar
- 0-60 psi / 0-4 bar
- 0-150 psi / 0-10 bar
Options
- Tapped Exhaust
- Knob with Stainless Steel Stem
- EAC TR CU Certification
- Stainless Steel Adjusting Screw
- Tamperproof Cover
- 1/4” BSP Porting
- ATEX 2014/34/EU
