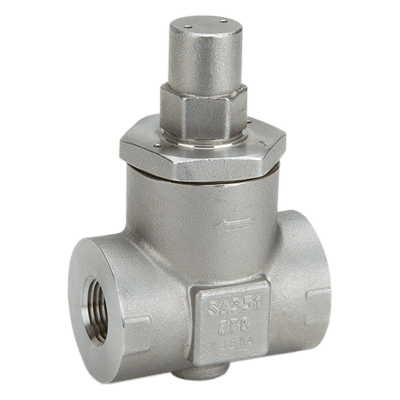

WT5000 Thermostatic Steam Trap
Brand: Watson McDanielThe WT5000 is specifically designed for steam tracing applications where accurate and adjustable control of condensate discharge temperature is desired.
Can be used where a temperature sensitive medium is being transferred in piping system or held in a storage vessel and standard steam tracing methods may not be adequate to maintain specific product temperatures. Having the ability to adjust the condensate discharge temperature would allow for accurate temperature control of the product being traced.
The significant feature of the WT5000 is that the condensate discharge temperature is easily field-adjustable.
Features- Excellent for various steam tracing and small process applications using the additional energy (sensible heat) of the hot condensate
- Field-adjustable bi-metal element allows control of condensate discharge temperature
- Internal screen and seat/plug design help prevent pipe scale and debris from accumulating on seating surfaces to provide trouble-free operation
- In-line repairable
Specifications
Brand
Enclosure, Body Material
- 304 Stainless Steel
- Stainless Steel
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 3/4” NPT Female
- 3/8” NPT Female
Welded Connection
- 1” Socket Weld End Female
- 1/2” Socket Weld End Female
- 3/4” Socket Weld End Female
- 3/8” Socket Weld End Female
