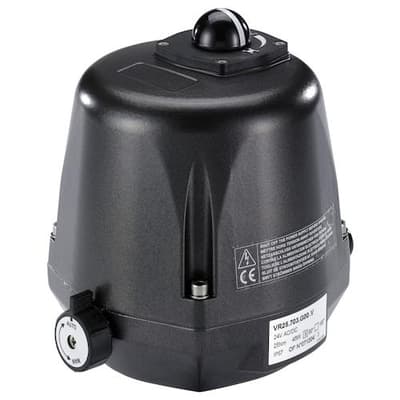

Type 3004 Explosion-Proof Rotary Actuator - On/Off & Control

Brand: Burkert Fluid Control Systems
Request Information
Does not ship to OH, United States

The rotary actuator type 3004 is a compact, powerful and explosion proofed actuator system which provides a long service life. Materials and components have been chosen for maintenance-free operation and ensure low thermal loading on the actuator.

The modular design offers many options such as extra limit switches or potentiometers, to be added to the basic unit.
Features
  • Direct mounting for quarter-turn valves
  • Manual override standard
  • Corrosion resistant
  • Adjustable limit switches
  • ATEX II 2 GD Ex d II B T6

Specifications

Brand

Certifications & Approvals

  • ATEX

Enclosure/Body Material

  • Body/Cover: Epoxy Coated Aluminium

Material of Construction

  • Axis / Screw / Gear: Stainless Steel

Operating Voltage

  • 100-240 Vac, 50/60 Hz
  • 24 Vac/dc ± 10 %

Power Consumption

  • 45 to 85 W

Environmental Protection

  • IP68

Ambient Temperature

  • -20° to 70° C

Input Signal

  • -0-10 V / -4-20 mA / -0-20 mA

Output Signal

  • -0-10 V / -4-20 mA / -0-20 mA
