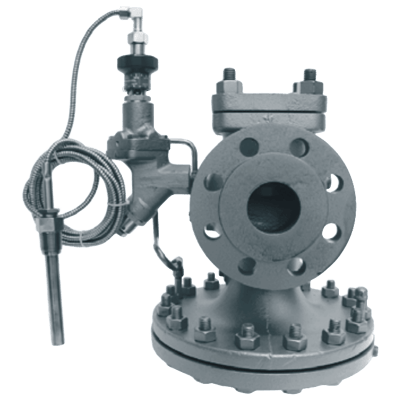

HDT Regulating Valve with Temperature Pilot

Brand: Watson McDaniel

The HD Regulator with the "T" Temperature Pilot is used for controlling temperature in various processes and systems, such as Oil Heaters, Ovens, Process Heaters, Vats, Dryers and Jacketed Kettles.
Features
  • Temperature adjustment made simple and easy by rotating an adjustment knob to the desired temperature setting
  • Capillary is armor-protected to resist damage
  • Optional stainless steel sensing bulb and capillary
  • Can be used with Pressure Pilot for simultaneous control of pressure and temperature
  • Hardened stainless steel trim on regulator for extended service life
  • Full port strainer and blowdown valve on pilot adapter for ultimate protection from dirt and scale

Specifications

Enclosure, Body Material

  • Ductile Iron

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 300#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 300#

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female
