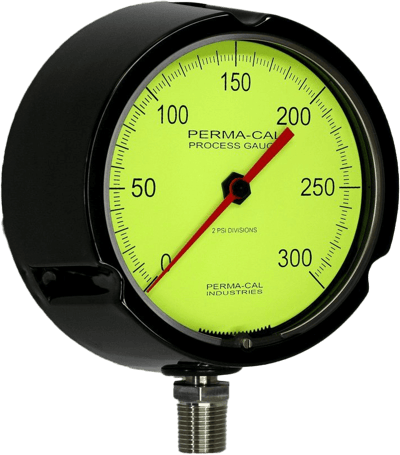

Ray Series Process Gauges

Brand: Perma-Cal Industries, Inc
Request Information
Favorite

Improved visibility in low light areas.
Features
  • Neon Dial + Red Pointer = High Contrast
  • Unmatched vibration, pulsation and shock performance.
  • Proof Pressure (over-pressure) of 150% F.S. exceeds industry standards.
  • Trusted in extremes from -65°F up to 600°F media.  Accuracy is 25% less affected by temperature fluctuations.
  • Direct Drive is demanded on critical applications.
  • Requires 85% less fill fluid than the competition. Accuracy is 50% less affected by temperatures above 68°F (20°C)
  • Lifetime warranty that the Bourdon tube will not malfunction due to wear.

Specifications

Brand

Accuracy

  • ± 0.5 % of F.S. (Grade 2A)
  • ± 0.5 % Full Scale at M.S. / ± 1.0 % Full Scale

Range Availability

  • Vacuum - 15,000 psi
  • Units: psi only
  • Types: Single Scale, Vacuum and Compound

Operating Temperature

  • Media Temperature: ABS: -65° F to 250° F GFN and Metal: -65° F to 600° F
  • Ambient Temperature: ABS: -65° F to 190° F GFN and Metal: -65° F to 400° F

Materials

  • ABS (acrylonitrile butadiene styrene)
  • Aluminum
  • Stainless Steel
  • GFN (glass-filled nylon): High-Temp Yellow Turret

Sizes, Types and Colors

  • 4.5” Dial Standard
  • Front Flange, No Flange, Rear Flange, Turret Style
  • Black, Blue, Green, Red, White, Yellow

Metal Case Finish

  • Powder Coated or Unpainted

Wetted Parts

  • Inconel X-750
  • 300-series SS
  • Silver Braze (nickel braze available)

Connection Material

  • 316 Stainless Steel standard (Monel available)
  • Mini Diaphragm Seal

Window Construction

  • Acrylic
  • Tempered Glass (increases heat tolerance)

Dial Construction

  • Stainless Steel Material , Powder Coated Finish
  • Neon Background, Black Markings, Red Pointer

Burst Pressure

  • 500 % Full Scale pressure or 25,000 psi

Proof Pressure (Over-Pressure w/ o Calibration Shift)

  • 150 % of F.S. for gauges ≤ 5,000 psi or equivalent
  • 125 % of F.S. for gauges > 5,000 psi or equivalent

  • Industrial, Energy & Power Plants
  • Wastewater Treatment Facilities
  • Pump Applications
  • Welding Gas Filling Stations
  • Steam Pipes
  • Oil & Gas Pipelines
  • Chemical Plants
  • Manufacturing Facilities
  • Refineries
