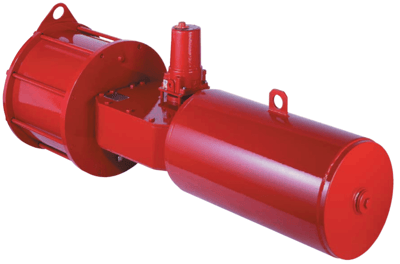

GP & GH Pneumatic & Hydraulic Actuator
Brand: Remote Control, Inc
GP and GH range scotch yoke actuators are designed to operate ball, butterfly and plug valves requiring a rotary, quarter-turn movement for either on/off or modulating duty.
The robust design has been proven in thousands of diverse applications the world over.
Specifications
Brand
Actuator Type
- Double-Acting
- Scotch Yoke
- Spring Return
Applications
- Hydraulic Applications
- Pneumatics Applications
Approvals & Certifications
- ATEX 94/9/EC
- GOST-R
- ISO 9001: 2008
- RTN (GGTN-R)
Approvals & Certifications
- EN 60529 (1991) + (A1: 2000)
- SIL 3 (IEC 61508)
Bushing Material
- Rod Bushing: PTFE
- Rod Bushing: Steel
- Yoke Bushing, Rod Bushing: Bronze
Enclosure, Body Material
- Carbon Steel
- Ductile Iron
Environmental Protection
- IP66M
- IP67M
Flange Material
- End Flange, Head Flange, Bottom Flange: Carbon Steel
Materials of Construction
- Pressure Relief Valve: Stainless Steel
- Sliding Block: Bronze
- Thrust bar & Connecting Rod (Chromium-Plated), Tie Rod: Alloy Steel
- Yoke, Guide Block, Pneumatic Cylinder & Hydraulic Cylinder (Electroless Nickel-Plated): Carbon Steel
- Yoke: Ductile Iron
O-Ring Material
- NBR
Operating Pressure
- Hydraulic - psi: 0 to 3,000 (kPa: 0 to 21,000, bar: 0 to 210)
- Pneumatic - psi: 0 to 175 (kPa: 0 to 1,200, bar: 0 to 12)
Override
- Manual Override
Piston Material
- Piston Rod (Chromium-Plated): Carbon Steel
Ring Material
- Sliding Ring: Graphite
- Sliding Ring: PTFE
Screw Material
- Stop Screw: Alloy Steel
Seat / Seal Material
- Seal: Bronze
- Seal: Graphite
- Seal: NBR
- Seal: PTFE
Size
- Centre Body: 3.34” to 13.7” (85 to 350 mm)
Spring Material
- Alloy Steel
- Spring Cartridge: Carbon Steel
Temperature Range
- Extreme Low: -60° to 160° C (-76° to 320° F)
- High: -20° to 160° C (-4° to 320° F)
- Low: -40° to 160° C (-40° to 320° F)
- Standard: -30° to 100° C (-22° to 212° F)
Torque
- Hydraulic: 0 to 3,700 Nm (0 to 29,900 In/Lbs)
- Output: 0 to 600,000 Nm (0 to 5.3 Million In/Lbs)
- Pneumatic: 0 to 4,500 Nm (0 to 39,828 In/Lbs)
