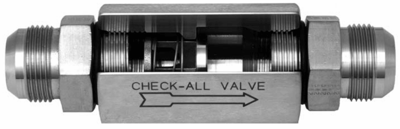

TF Tubing Check Valve-Flared
Brand: Check-All Valve Manufacturing CompanyThe Tubing Check Valve-Flared (TF) is a three-piece constructed check valve with 37° flared end fittings that conform to SAE J514 & ISO 8434-2.
These valves are designed for maximum flow with minimal pressure drop. The TF valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.
Specifications
Approvals & Certifications
- CE
- PED 97/23/EC
Approvals & Certifications
- ISO 9001
Diameter
- Orifice: 0.348" to 2.025" (8.63 to 51.31 mm)
Enclosure, Body Material
- 316 Stainless Steel
- Brass
- Carbon Steel
Flow Rate
- 0.08 to 60 Cv
Media
- Water
O-Ring Material
- AFLAS
- Buna-N
- EPDM
- Kalrez
- Neoprene
- PTFE
- Viton
Pressure Range
- Non-Shock Pressure-Temperature Rating - psi: 1,600 to 3,000 (kPa: 11,030 to 20,680, bar: 110.3 to 206.8) at 37.7° C (100° F) for Brass
- Non-Shock Pressure-Temperature Rating - psig: 1,800 to 7,700 (kPa: 12,410 to 53,090, bar: 124 to 531) at 37.7° C (100° F) for Stainless Steel Body
- Non-Shock Pressure-Temperature Rating - psig: 2,000 to 6,000 (kPa: 13,790 to 41,370, bar: 137.9 to 413.7) at 37.7° C (100° F) for Carbon Steel Body
Seat / Seal Material
- Seat: AFLAS
- Seat: Buna-N
- Seat: EPDM
- Seat: Kalrez
- Seat: Metal to Metal
- Seat: Neoprene
- Seat: PTFE
- Seat: Viton
Size
- Tubing Outer Diameter: 1/8" to 2" (3.17 to 50.8 mm)
Spring Material
- 316 Stainless Steel
- AISI 631 Stainless Steel, 17-7 PH
- Alloy 400 or Monel
- Alloy C-276 or Hastelloy
- Alloy X-750 (Inconel)
- Fluorinated Ethylene Propylene (FEP)
- Titanium
Tolerance
- Spring Tolerance: ± 15 %
Tube Connection
- 1" O.D. Tube
- 1/2" O.D. Tube
- 1/4" O.D. Tube
- 1/8" O.D. Tube
- 1-1/2" O.D. Tube
- 1-1/4" O.D. Tube
- 2" O.D. Tube
- 3/4" O.D. Tube
- 3/8" O.D. Tube
- 5/8" O.D. Tube
- 7/8" O.D. Tube
