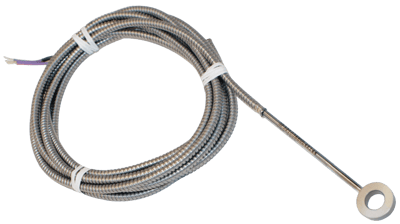

Style 32 Sheath Style RTD Temperature Sensor

Brand: United Electric Controls Ltd
Does not ship to VA, United States

Designed for use in any pipe or surface temperature measuring application.
Features
  • NEMA 4 or explosion-proof heads
  • Heat transfer pad with excellent temperature response
  • Rugged stainless steel sheaths for excellent mechanical protection
  • Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes.
  • Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles

Specifications

Accuracy

  • ± 0.01 %
  • ± 0.06 %
  • ± 0.12 %

Approvals & Certifications

  • Certificate of Conformance

Cable Type

  • Armored

Connectors

  • 1/2” BX Connector
  • 3/4” BX Connector

Diameter

  • Sheath: 0.188” (4.78 mm)

Electrical Connectors

  • #6 & #10 Spade Terminal, Copper-Plated
  • #8 & #10 Ring Terminal
  • 1/4” Push-On Insulated Terminal, Copper-Plated
  • Standard Jack, Rated to 177° C (350° F)
  • Standard Plug, Rated to 177° C (350° F)

Element

  • Dual Elements
  • Single Element

Length

  • Sheath Length: 36” (914.4 mm) - Max.

Materials of Construction

  • Insulated Conductor: Teflon
  • Washer: Stainless Steel

NACE & NIST

  • NIST Traceable Calibration

Name Plate, Tag Material

  • Stainless Steel

Operating Temperature - Sensor

  • -45° to 482° C (-50° to 900° F)

RTD Type

  • Pt100

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sensor, Probe Material

  • Platinum

Sensor, Probe Type

  • RTD

Size

  • Washer Size: 0.188” to 0.5” (4.78 to 12.7 mm)
