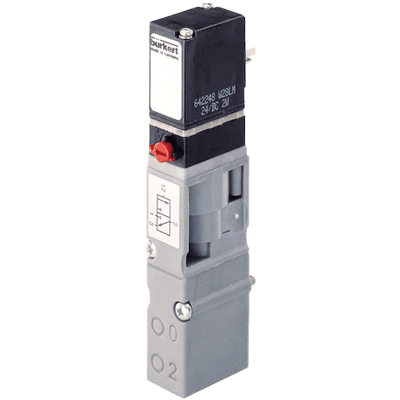

6526 3/2-Way Solenoid Valve

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

The solenoid valve Type 6526 consists of a pneumatic valve body fitted with Type 6106 rocker pilot valve. The rocker principle allows switching of high pressures together with low power consumption and fast response times.

The extendable Type 6527 can be used for block modules (tag connectors in front) or for entire valve islands (8640 and 8644 - tag connectors at the block).

All valves are equipped with manual override as a standard.
Features
  • Compact design
  • Single and manifold mounting
  • Low power consumption
  • Rocker pilot in DC
  • Fast response times

Specifications

Ambient Temperature Range

  • -10° to 55° C (14° to 131° F)

Consumption

  • Power: 1 W
  • Power: 2 W

Duty Cycle

  • Continuous Operation 100 % ED

Electrical Connectors

  • G 1/8”
  • Pneumatic Module: Push-In Connection Ø 8 mm
  • Tag Connector According to DIN EN 175301-803 (Previously DIN 43650) Form C-Typical 2506

Enclosure, Body Material

  • Polyamide (PA)

Environmental Protection

  • IP65

Flow Rate

  • QNn Value Air: 700 L/minute

Media

  • Lubricated Dry Air
  • Neutral Gases (10 μm Filtering)
  • Non-Lubricated Dry Air

Mounting

  • With 2 Screws M3 x 30

Mounting Position

  • Preferably with Actuator Upright

Nominal Power

  • 1 W
  • 2 W

Orifice Size

  • 6 mm

Override

  • Manual Override

Pressure Range

  • psi: 14.5 to 145 (kPa: 100 to 1,000, bar: 1 to 10)

Process Temperature

  • -10° to 50° C (14° to 122° F)

Response Time

  • Opening & Closing: 12 to 20 milliseconds According to ISO 12238

Seat / Seal Material

  • Seal: NBR

Solenoid Type

  • 3/2-Way

Tolerance

  • Voltage: ± 10 %

Voltage

  • 24 Vdc
