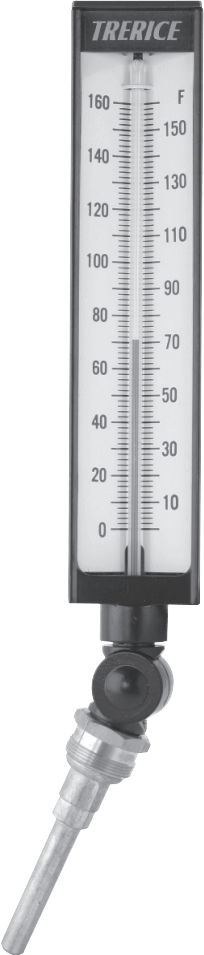

Adjustable Angle Series Industrial Thermometer
Brand: Trerice Gauges & ValvesRecognized globally as the Trerice “BX” Industrial Thermometer, this is an instrument of extreme accuracy and rugged dependability.
Available in scale sizes of 7" (AX9), 9" (BX9), & 12" (CX9), with a durable cast aluminum case, this universally adjustable, liquid-in-glass thermometer is the most widely specified instrument of its kind.
Features- 7", 9", 12" Scale
- ± 1 Scale Division Accuracy
- Cast Aluminum Case
- Adjustable Angle Stem
Specifications
Models
- AX9, BX9, CX9
Scale Size
- 7”, 9” & 12” Adjustable Angle
Fill Type
- Spirit: Blue Colored, Organic
Case
- Cast Aluminum, Blue Epoxy Finish
Stem
- Aluminum, Brass, 304 Stainless Steel or Air-Duct Style Available
Connection
- Air-Duct: Reversible Mounting Flange with 3 Bolt Holes
- Standard: 1-1/4-18 UNEF-2A Coupling Nut
Window
- Ultraviolet Protective Acrylic on ranges to 300° F
- Glass on ranges over 300° F
Tube
- Lens Front, Magnifying Type
Scale
- Aluminum, White Background with Black Graduations and Markings
Top Plate
- ABS
Accuracy
- ± 1 Scale Division
Approximate Shipping Weight
- AX9: 1.5 lbs (0.68 kg)
- BX9: 1.6 lbs (0.73 kg)
- CX9: 2.0 lbs (0.91 kg)
