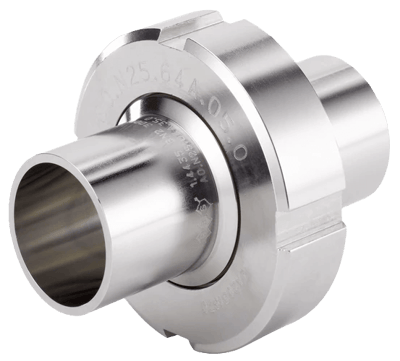

BBS-03 Sterile Orbital Threaded Connection

Brand: Burkert Fluid Control Systems
Does not ship to OH, United States

The BBS sterile orbital threaded connection is designed to give a controlled compression of the O-ring thus guaranteeing a safe, secure and crevice free connection. This means optimum cleaning performance with faster cleaning times, reduced consumption of cleaning media, and significantly less waste because residues are simply not possible with this solution.

Using these connections combines peace of mind for process security with flexibility and simplicity. Standard O-rings are used making material selection simple as well as enhancing stocking efficiency.

This is only one product employing the BBS design concept; please see our complete range of products for use across wide scope of applications where sterile conditions are of utmost priority.
Features
  • Optimum design according to recommendation of the ASME BPE directives
  • Guaranteed crevice free
  • All medium contact materials traceable, traceable seal on request
  • Component of the BBS modular system

Specifications

Ambient Temperature Range

  • -20° to 80° C (-4° to 176° F)

Applications

  • Biotechnology
  • Chemical Industry
  • Cosmetics
  • Dairy Industry
  • Food
  • Pharmaceutical

Approvals & Certifications

  • EHEDG
  • FDA - All Specified Seal Materials
  • Material Certificate 3.1
  • USP Class VI - EPDM, PTFE & FEP

Enclosure Finish

  • Electro-Polished (Medium Contacted Surface < Ra 0.8 μm)

Materials of Construction

  • AISI 904L Stainless Steel, 1.4539
  • AISI F44 Stainless Steel, 1.4547
  • AISI F53 Stainless Steel, 1.4410
  • Hastelloy C2
  • Medium Contact: AISI 316L Stainless Steel (1.4435) BN2
  • Medium Separated: AISI 303 Stainless Steel, 1.4305

Media

  • Gas
  • Liquids

O-Ring Material

  • EPDM
  • FEP
  • FKM
  • PTFE
  • Silicone

Operating Pressure

  • psi: -14.5 to 232 (kPa: -100 to 1,600, bar: -1 to 16)

Operating Temperature

  • EPDM Seal: -40° to 90° C (-40° to 194° F) - Temporary to 140° C (284° F)
  • FEP Seal: -60° to 160° C (-76° to 320° F) Temporary to 205° C (401° F)

Orifice Size

  • 0.23” to 5.90” (6 to 150 mm)

Pipe Connection

  • 1” Pipe (DN 25)
  • 1/2” Pipe (DN 15)
  • 1/4” Pipe (DN 8)
  • 1-1/2” Pipe (DN 40)
  • 1-1/4” Pipe (DN 32)
  • 2” Pipe (DN 50)
  • 2-1/2” Pipe (DN 65)
  • 3” Pipe (DN 80)
  • 3/4” Pipe (DN 20)
  • 3/8” Pipe (DN 10)
  • 4” Pipe (DN 100)
  • 5” Pipe (DN 125)
  • 6” Pipe (DN 150)

Seat / Seal Material

  • Seal: EPDM
  • Seal: FEP
  • Seal: PTFE

Welded Connection

  • 1” Weld End
  • 1/2” Weld End
  • 1/4” Weld End
  • 1-1/2” Weld End
  • 1-1/4” Weld End
  • 2” Weld End
  • 2-1/2” Weld End
  • 3” Weld End
  • 3/4” Weld End
  • 3/8” Weld End
  • 4” Weld End
  • 5” Weld End
  • 6” Weld End

  • Biotechnology
  • Pharmaceutical
  • Chemical industry
  • Dairy
  • Food
  • Cosmetic
