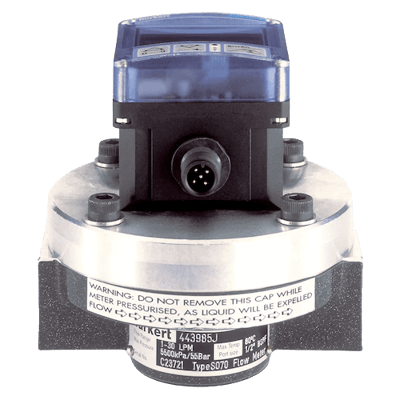

8072 Positive Displacement Flowmeter

Brand: Burkert Fluid Control Systems
Does not ship to Virginia, United States

This positive displacement flowmeter/threshold detector with display is designed for use in slighly viscous fluid like glue, honey or oil and specially to switch a valve and to establish a monitoring system or an On/Off control loop. The switching points can be configured with the 3-keys below the display.

The 8072 is available with On/Off output, or with process value outputs.
Features
  • Indication, monitoring, transmitting and On/Off control in one device
  • Selectable outputs (transistor or relay)
  • Automatic calibration: Teach-In
  • Process value output: 4-20 mA

Specifications

Accuracy

  • ± 1 % of Reading

Ambient Temperature Range

  • Operating & Storage: 0° to 60° C (32° to 140° F)

Approvals & Certifications

  • Security: EN 61010-1
  • EMC: EN 61000-6-2, EN 61000-6-3
  • UL (C,US): UL 61010-1 + CAN/CSA C22 No.61010-1

Cable Length

  • 328.1 feet (100 metres) - Max.

Consumption

  • Current: ≤ 90 mA (without Load)

Cover Material

  • Glass Fibre Reinforced

Diameter

  • Pipe: 1/2 to 4” (DN 15 to DN 100)

Display

  • 8-Digit LCD with Backlighting

Electrical Connectors

  • 0.5 mm², Max.
  • 5-Pin or Male M12 Connector
  • 8-Pin
  • Cable Plug According to EN 175301-803
  • Free Positionable Male M12 Connector
  • Shielded Cable

Enclosure, Body Material

  • Polycarbonate (PC)

Environmental Protection

  • IP65

Frequency

  • Output (Transistor): 0 to 300 Hz

Humidity

  • ≤ 80 % Relative Humidity, Non-Condensing

Loop Resistance

  • 1,000 ohms at 30 Vdc
  • 1,300 ohms at 36 Vdc
  • 200 ohms at 12 Vdc
  • 450 ohms at 18 Vdc
  • 700 ohms at 24 Vdc

Materials of Construction

  • Connector M12: Polyamide (PA)
  • Front Panel Folio: Polyester

Measuring Range

  • 5 MPa.s: 2 to 1,200 L/minute

Operating Voltages

  • 12-36 Vdc ± 10 %, Filtered & Regulated

Output

  • 4-20 mA
  • Transistor (NPN): 0.2-36 Vdc
  • Transistor (NPN): 700 mA - Max.
  • Transistor (PNP): 500 mA - Max.

Output Format

  • Transistor: Open Collector

Plug Material

  • Cable Plug: Polyamide (PA)

Pressure Range

  • bar: 0 to 55
  • kPa: 0 to 5,500
  • psi: 0 to 798

Process Temperature

  • Fitting in Aluminum: 0° to 80° C (32° to 176° F)
  • Fitting in Stainless Steel: 0° to 100° C (32° to 212° F)

Relay Output

  • 3 A at 30 Vdc
  • 3 A at 48/250 Vac

Repeatability

  • ≤ 0.03 % of Reading

Reverse Polarity Protection

  • Yes

Screw Material

  • Stainless Steel

Seat / Seal Material

  • Seal: FEP
  • Seal: FKM
  • Seal: PTFE

Shaft Material

  • Stainless Steel

Shock

  • EN 60068-2-27

Switch Type

  • Transistor (NPN and/or PNP)

Vibration

  • EN 60068-2-6

Viscosity

  • 5 MPa·s
  • 1 Pa·s Max.

Wetted Materials

  • Fitting, Rotor: 316F Stainless Steel (1.4401)
  • Fitting, Rotor: Aluminum
  • Rotor: PPS
