500X Series

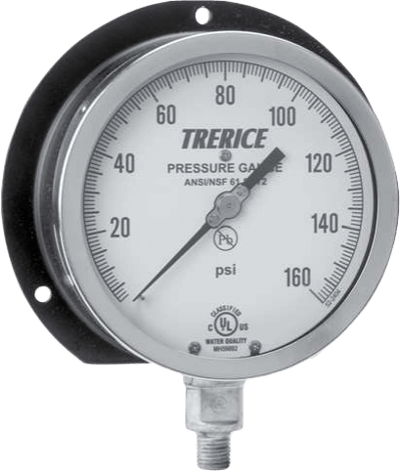

Brand: Trerice Gauges & ValvesThe Trerice 500X Series industrial Gauge is designed to withstand the most demanding application of a variety of industries.
This pressure gauge has a back flanged, cast aluminum case and stainless steel ring.
Wetted parts are either bronze tube with Lead-Free (PBF) brass socket or stainless steel tube and socket.
Features- 4½", 6", 8½", 12" Dial Sizes
- ±0.5% Accuracy
- Cast Aluminum Case
- Optional features and case style variations available: Please consult the Options & Accessories Section for details
- For correct use and application of all pressure gauges, please refer to: Pressure Gauge Standard ASME B40.100
Specifications
Dial Size
- 4-1/2” - 12”
Movement
- Stainless Steel
Connection
- Lower Male or Lower Back Male, 1/4” or 1/2” NPT
Case
- Cast Aluminum, Black Finished, Surface Mounted Back Flanged
Ring
- 4-1/2”, 6” Dial Size: Friction type, 304 Stainless Steel
- 8-1/2”, 12” Dial Size: Slotted Stainless Steel
Window
- Clear Glass
Pointer
- 4-1/2”, 6”, 8-1/2” Dial Size: Micro Adjustable, Black Finished
- 12” Dial Size: Micro-adjustable, Black Finished, Knife-Edged
Dial Face
- Aluminum, White Background with Black Graduations and Markings
Accuracy
- ± 0.5 % Full Scale, ASME B40.100 Grade 2A
Maximum Temperature
- 250° F (121° C)
Approximate Shipping Weight
- 4-1/2” Dial Size: 2.0 lbs [0.91 kg]
- 6” Dial Size: 2.8 lbs [1.27 kg]
- 8-1/2” Dial Size: 5.8 lbs [2.63 kg]
- 12” Dial Size: 14.6 lbs [6.62 kg]
