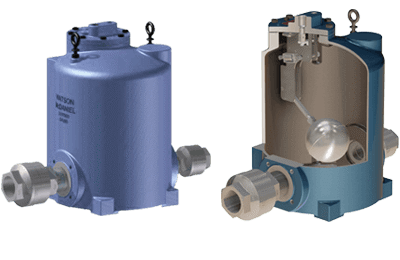

PMPC Pressure Motive Pump
Brand: Watson McDanielThe PMPC model Ductile Iron non-electric pressure motive pump is typically used when liquids must be moved to higher elevation, higher pressure or extended distances.
This stand-alone pump is capable of operating with a maximum motive pressure of psig: 200 (kPa: 1,379, bar: 13.79) provided by steam, air or other gas supply.
Features- Equipped with our Patented "Snap-Assure" Mechanism which extends the useful life of the pump
- Mechanism incorporates heat-treated stainless steel wear items
- All stainless steel internals for ultimate corrosion resistance
- Dual compression springs made from Inconel®-X-750 for high-temperature corrosive service
- Operates using steam, air, nitrogen or other pressurized gases as the motive force
- Non-Electric - can be used in remote locations or NEMA 4, 7, 9 and hazardous areas
Specifications
Brand
Cover Material
- Ductile Iron
Enclosure, Body Material
- Ductile Iron
Environmental Protection
- IP66
- NEMA 4
- NEMA 7
- NEMA 9
Gasket Material
- Cover Gasket: Grafoil
Materials of Construction
- Check Valves, Other Internal Components: Stainless Steel
- Inlet & Vent Valve: Hardened Stainless Steel 40 Rc
- Mechanism Yoke, Ball Float: 304 Stainless Steel
NPT Connection
- 1” NPT Female
- 1-1/2” NPT Female
- 2” NPT Female
- 3” NPT Female
Nut & Bolt Material
- Cover Bolts: Steel
Operating Pressure
- psig: 200 (kPa: 1,379, bar: 13.79) - Max.
Operating Temperature
- 197.7° C (388° F) - Max.
Pressure Range
- Allowable Pressure - psig: 0 to 200 (kPa: 0 to 1,378, bar: 0 to 13.78)
Pressure Type
- Gauge
Spring Material
- Inconel X-750
Temperature Range
- Allowable Temperature: 343° C (650° F) at psig: 200 (kPa: 1,379, bar: 13.79) - Max.
