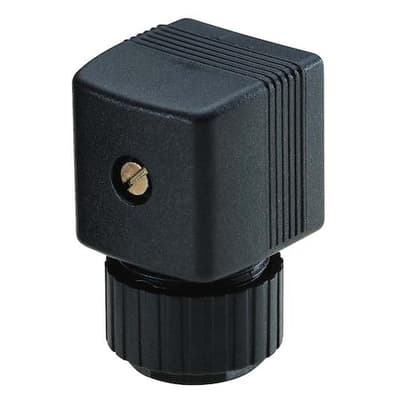

Type 2508 Cable Plug

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

Plug for the connection of electrical components according to DIN EN 175301-803 (previously DIN 43650, Form A). Standard version without circuit, with LED, varistor, rectifier, pole protection- or/and free wheeling diode.

Variants with HL-circuit to increase performance of solenoid valves, LR-circuit to decrease power consumption and IN-circuit for control of impulse coils.
Features
  • Protection class IP65
  • Numerous variants
  • Versions with high-power, power reduction and inverter for impulse valves

Specifications

Enclosure/Body Material

  • Body: Polyamide, Polycarbonate

Contact Material

  • Brass, Silver-Plated

Maximum Continuous Temperature

  • 90° C (-10° to 55° C by Version HL, LR and IN)

Cable Diameter

  • 6 to 7 mm

Cable Outlet

  • Can be Rotated Through 4 x 90°

Contact Distance

  • 18 mm

Contact Resistance

  • Typical 5 mΩ

Environmental Protection

  • IP65
