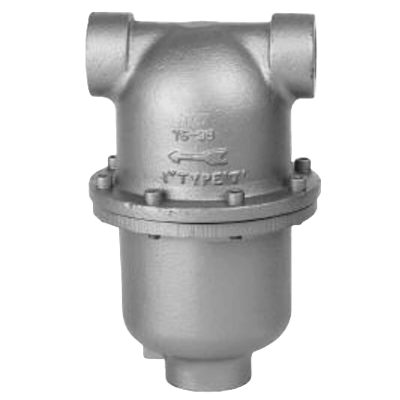

WDS Series Air/Steam Moisture Separator
Brand: Watson McDaniel
The WDS Series Separators are used for the removal of entrained liquid or solids from steam. Effective in applications were the system has an entrained liquid flow rate of up to 40% by weight of the unit’s flow capacity.
Features- High efficiency: 99% of all particles 10 microns and larger
- Minimum pressure drop
- Gauge ports on 3" & 4" cast iron units
- Standard gauge ports on 21/2" to 12" carbon steel units
- ASME Code constructed
Specifications
Brand
Enclosure, Body Material
- Carbon Steel
- Cast Iron
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - 125#
- 1-1/2” (DN 40) - 150#
- 1-1/2” (DN 40) - 300#
Flange Size - 1-1/4” (DN 32)
- 1-1/4” (DN 32) - 125#
- 1-1/4” (DN 32) - 150#
- 1-1/4” (DN 32) - 300#
Flange Size - 1” (DN 25)
- 1” (DN 25) - 125#
- 1” (DN 25) - 150#
- 1” (DN 25) - 300#
Flange Size - 10” (DN 250)
- 10” (DN 250) - 125#
- 10” (DN 250) - 150#
Flange Size - 12” (DN 300)
- 12” (DN 300) - 150#
- 12” (DN 300) - 300#
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - 125#
- 2-1/2” (DN 65) - 150#
- 2-1/2” (DN 65) - 300#
Flange Size - 2” (DN 50)
- 2” (DN 50) - 125#
- 2” (DN 50) - 150#
- 2” (DN 50) - 300#
Flange Size - 3” (DN 80)
- 3” (DN 80) - 125#
- 3” (DN 80) - 150#
- 3” (DN 80) - 300#
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - 125#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 125#
- 4” (DN 100) - 150#
- 4” (DN 100) - 300#
Flange Size - 5” (DN 125)
- 5” (DN 125) - 150#
- 5” (DN 125) - 300#
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150#
- 6” (DN 150) - 300#
Flange Size - 8” (DN 200)
- 8” (DN 200) - 150#
- 8” (DN 200) - 300#
NPT Connection
- 1” NPT
- 1-1/2” NPT
- 1-1/4” NPT
- 2” NPT
- 2-1/2” NPT
- 3” NPT
- 3/4” NPT
Welded Connection
- 1” Socket Weld End
- 10” Socket Weld End
- 1-1/2” Socket Weld End
- 1-1/4” Socket Weld End
- 12” Socket Weld End
- 2” Socket Weld End
- 2-1/2” Socket Weld End
- 3” Socket Weld End
- 4” Socket Weld End
- 5” Socket Weld End
- 6” Socket Weld End
- 8” Socket Weld End
