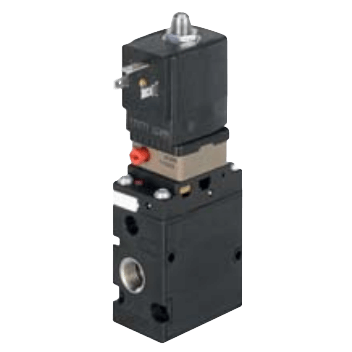

6518/6519 Pneumatic Solenoid Valve
Brand: Burkert Fluid Control Systems
Type 6518 and the Type 6519 together form a product line. Both types can be mounted on a pneumatic module. The valve width of 32 mm allows high flow rates. A solenoid valve Type 6014 is used as a pilot.
The valves can be used individually or in blocks.
Specifications
Ambient Temperature Range
- -25° to 55° C (-13° to 131° F)
Approvals & Certifications
- Compressed Air Quality: ISO 8573-1: 2010, Class 7.4.4
BSP Connection
- G 1/4” Female
- G 1/8” Male
Consumption
- Power (Hold [Hot Coil]): 2 W (AC/DC)
- Power (Hold [Hot Coil]): 6 VA (AC)
- Power (Inrush): 11 VA (AC)
Duty Cycle
- 100 % Continuous Operation
Electrical Connectors
- Tag Connector According to DIN EN 175301-803 (Previously DIN 43650) Form A for Cable Plug Typical 2508
Enclosure, Body Material
- Aluminum - Typical 6519 (Main Valve [5/3-Way])
- Glass-Fibre-Reinforced - Typical 6518 (Pilot & Main Valve), Typical 6519 (Pilot Valve)
- Polyamide - Typical 6518 (Pilot & Main Valve), Typical 6519 (Pilot Valve, Main Valve [5/2-Way])
Environmental Protection
- IP65
Flow Rate
- QNn Value Air: 1,300 L/minute
Materials of Construction
- Threaded Socket Material: Brass
- Threaded Socket Material: Stainless Steel
Media
- Lubricated Compressed Air
- Neutral Medium
- Non-Lubricated Compressed Air
Mounting Position
- Preferably with Actuator Upright
Nominal Power
- 2 W
NPT Connection
- 1/4” NPT Female
Operating Voltages
- 24 Vdc
- 24-230 V at 50/60 Hz
Orifice Size
- 8 mm
- 9 mm - Typical 6519
Override
- Manual Override
Pressure Range
- psi: 29 to 116 (kPa: 200 to 800, bar: 2 to 8) - Typical 6518
- psi: 29.01 to 145 (kPa: 200 to 1,000, bar: 2 to 10) - Typical 6519
Process Temperature
- -10° to 50° C (14° to 122° F)
Response Time
- Closing: 40 milliseconds (Pressure Drop 100 to 10 %)
- Opening: 20 milliseconds (Pressure Rise 0 to 90 %)
Seat / Seal Material
- Seal: NBR - Typical 6518, Typical 6519 (5/2 & 5/3-Way)
- Seal: Polyurethane (PUR) - Typical 6518, Typical 6519 (5/2-Way)
Solenoid Type
- 3/2-Way
- 5/2-Way
- 5/3-Way
Tolerance
- Voltage: 10 %
