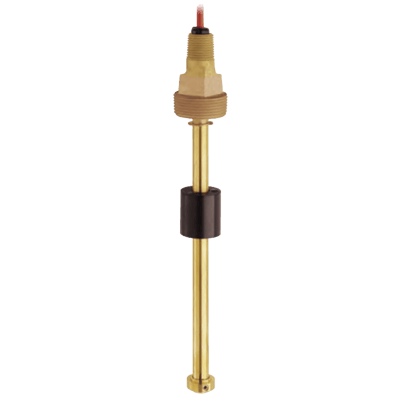

Series CLT Continuous Level Transmitter

Brand: Dwyer Instruments, LLC
Request Information
Favorite

Continuous Output Level Transmitters provide up to the minute tank level monitoring.

Customize level transmitters to meet application requirements. Transmitters can be configured for 4 to 20 mA or proportional voltage output, stainless steel or Buna-N floats, and lengths up to 72˝ (183 cm).
Features
  • Customized stem length, actuation point, distance between floats, and lead wire lengths
  • 4 to 20 mA or proportional voltage output outputs continuous level indication

View Details

Specifications

Brand

Electrical Connectors

  • 22 AWG, 24” (61 cm)
  • Junction Box
  • TFE Jacketed

Environmental Protection

  • IP56
  • NEMA 4

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#

Length

  • 68” (6.4 mm) - Indication Length, Max.
  • 72” (1.82 m) - Overall Length, Max.

Loop Resistance

  • 1.4 kiloohms

Media

  • Compatible Liquids

NPT Connection

  • 1/2” NPT Male
  • 1-1/4” NPT Male
  • 2” NPT Male

Output

  • 10-40 Vdc
  • 4-20 mA

Power Requirement

  • 10 to 30 Vdc, 4-20 mA - Proportional Voltage Output
  • 10-40 Vdc

Pressure Range

  • bar: 10.34 to 20.68
  • kPa: 1034 to 2068
  • psi: 150 to 300

Resolution

  • 1/4”

Sensor Orientation

  • Vertical ± 20°

Stem Material

  • 316 Stainless Steel with Stainless Steel ARMCO PH-15-7MO Stops
  • Brass

Temperature Range

  • -40° to 110° C (-40° to 230° F)

  • General Purpose Level Monitoring
  • Low specific Gravity Applications
  • Gas and Oil
