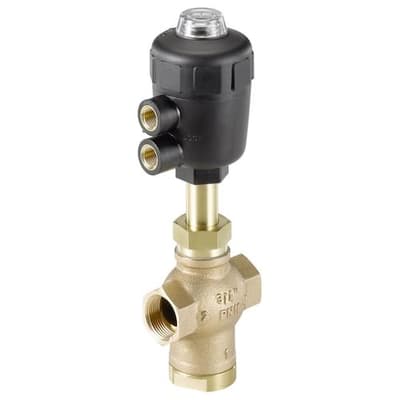

Type 2002 Pneumatically Operated 3/2-Way Globe Valve CLASSIC

Brand: Burkert Fluid Control Systems
Does not ship to United States

The pneumatically operated 3-way valve is operated with a piston actuator. The standard actuator material is PA. For high ambient temperatures (eg external sterilization) PPS is available on request for temperatures up to 140° C.

High flow rates are attained with the gunmetal 3-way body. The reliable self adjusting packing gland provides high sealing integrity.

Various fluidic circuit functions can be obtained by a simple exchange of the pressure and service ports. These maintenance-free and robust valves can be retro-fitted with a comprehensive range of accessories for position indication or manual override.
  • Compact
  • Long service life
  • Robust actuators with modular accessory program
  • Gunmetal housing with thread port connection



  • DN 15 - 50

Enclosure/Body Material

  • Body: Gunmetal

Material of Construction

  • Actuato: PA (PPS on Request)
  • Seal: PTFE


  • Water, Alcohol, Oils, Fuels, Hydraulic Fluid, Alkaline Solutions, Salt Solution, Organic Solutions, Hot Water, Steam

Medium Temperature

  • -10° to +180° C

Ambient Temperature

  • -10° to +60° C

Port Connection

  • Threaded Port
