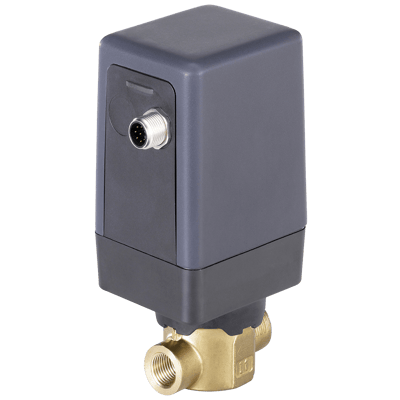

3270 2/2-Way Motor Valve

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

Type 3270 is a direct-acting and general-purpose motor valve for shut-off, used as regulating unit in control loops.

A linear stepper motor as actuator drives the valve, which comes in a compact and robust housing. The integrated electronics simplify the process integration; additional actuation modules are not necessary.

Due to an elastomeric seat seal the valve closes tight up to the DN specific nominal pressure. In case of power failure, the actual valve position will be kept. If a specific safety position in case of power failure is required, this can be realized by using an external buffer module.

The motor's power consumption in opened or closed position is nearly zero. This key feature can reduce the energy consumption of a plant dramatically and thus make it more efficient.

The LED gives an optical indication of the valve‘s position and status.

Specifications

Ambient Temperature Range

  • -10° to 60° C (14° to 140° F)

BSP Connection

  • G 1/4” Female
  • G 3/8” Female

Consumption

  • Power: < 1 W in Holding Position
  • Power: 8 W, Max.

Duty Cycle

  • 100 % Duty Cycle (Depending on Fluid & Ambient Temperature)

Electrical Connectors

  • M12 Connector, 8-Pin, Male

Enclosure, Body Material

  • Fluid: Brass
  • Fluid: Stainless Steel
  • Valve: Polycarbonate (PC)
  • Valve: Polyphenylene Sulfide (PPS)

Environmental Protection

  • IP50

Flow Rate

  • 0.15 to 0.9 m³/hour (Kvs) - Water

Indication

  • LED

Input

  • 0-5 V (Log 0, Valve Closed)
  • 10-30 V (Log 1, Valve Open)

Media

  • Liquids
  • Neutral Gas

Mounting Position

  • Preferably with Actuator Upright

Nominal Pressure

  • psig: 87 (kPa: 600, bar: 6)

NPT Connection

  • 1/4” NPT Female
  • 3/8” NPT Female

O-Ring Material

  • FKM
  • NBR

Orifice Size

  • 0.078” to 0.236” (2 to 6 mm)

Output

  • Load Capacity: 100 mA - Max.
  • Load Capacity: 10-30 V

Power Supply

  • 24 Vdc ± 10 %, Max.

Pressure Range

  • psi: 0 to 90 (kPa: 0 to 600, bar: 0 to 6) - Overpressure with Respect to Atmospheric Pressure

Process Temperature

  • Fluid Temperature: 0° to 70° C (32° to 158° F)

Response Time

  • Closure Time: 2.5 seconds (0 to 100 % Stroke)

Seat / Seal Material

  • Elastomeric
  • Spindle Seal: FKM
  • Spindle Seal: NBR

Spindle Material

  • Stainless Steel

Viscosity

  • 600 mm²/sec (cSt) - Max.
