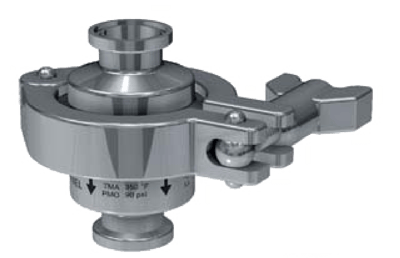

FDA500 Clean Steam Thermostatic Steam Trap
Brand: Watson McDanielFDA500 Series thermostatic clean steam traps are used in clean steam applications as drip traps on piping runs as well as for drainage for CIP/SIP systems and various process vessels.
Available with -16.67° C (2° F) sub-cool bellows.
Features- All wetted parts are 316L stainless steel
- Electro-polish finish of 20 to 25 microinches RA on internal surfaces of body
- Electro-polish finish of 25 to 32 microinches RA on external surfaces of body
- Operates close to saturation curve to minimize condensate back-up
- Completely self-draining in the vertical downward flow orientation
Specifications
Brand
Enclosure, Body Material
- AISI 316L Stainless Steel
NPT Connection
- 1” NPT
- 1/2” NPT
- 1-1/2” NPT
- 3/4” NPT
Tri-Clamp Connection
- 1” Tri-Clamp
- 1/2” Tri-Clamp
- 1-1/2” Tri-Clamp
- 3/4” Tri-Clamp
Tube Connection
- 1” Tube
- 1/2” Tube
- 1-1/2” Tube
- 3/4” Tube
