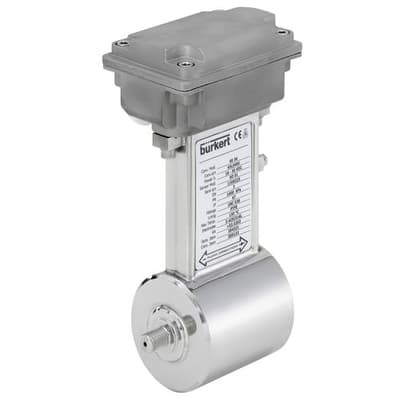

Type S051 Magnetic-Inductive Flow-Rate Sensor

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

The type S051 magnetically inductive flow sensor (compact or separate version) is suitable for low-flow applications and liquids with minimum conductivity.

The combination with the SE58 M or SE58 L transmitters (minimum conductivity required: 5 µS/cm) results in a flowmeter with different performance, functions, materials and approvals, with the corresponding suitability for the respective applications, depending on the respective requirements.

With SE58 M or SE58 L compact devices as well as separate versions where the transmitter and sensor are connected to each other with 2 cables up to a maximum distance. Threads in G and NPT are available as standard process connections of the S051.

In combination with a dosing valve, the S051 sensor can also be used in combination with the SE58 L for high-precision filling processes.
Features
  • For connection to a type SE58 transmitter (with display, in compact or remote version) for flow measurement
  • CIP capable
  • Flow measurement 0.2... approx. 200 l/min for DN 03... DN 20

Specifications

Wetted Material

  • 316L Stainless Steel (1.4404)
  • Alloy C, Titanium, Tantalum, Platinum-Rhodium
  • PTFE
  • FKM (EPDM or FFKM on Request)

Sensor Housing

    Junction Box

    • Stainless Steel 304 (1.4301)

    Pipe Diameter

    • DN 03-20

    Measuring Range

    • 0 to 10 L/hr Up to 0 to 12,500 L/h

    Medium Temperature

    • -20° to 130° C (-4° to 266° F)

    Process Connection

    • External Thread G ISO 228-1
    • NPT
    • DIN 11851, SMS 1145, Clamp, ISO 2852 or BS 4825, Flange DIN 2501, ANSI on Request

    Certifications & Approvals

    • CE

    Environmental Protection

    • IP67, IP68
