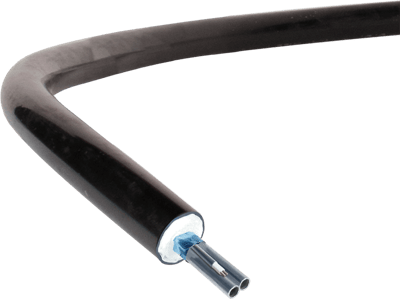

TubeTrace® with MIQ™ Electrically Heated Tubing Bundles
Brand: Thermon, IncTubeTrace, with series resistance MI heat tracing, is designed to maintain high temperatures or provide freeze protection where high temperature exposure is possible. MIQ withstands temperature exposures of 593°C (1,100°F).
The seamless Alloy 825 sheath and construction of the heating element make MIQ an exceptionally durable heat tracing option.
This has made MIQ the industry standard for high temperature heat tracing applications, and it is available in TubeTrace pre-insulated instrument tubing bundles.
Features- High temperature maintenance
- High temperature exposure
- High watt density applications
- Certified for use in ordinary (non-classified) areas and in potentially explosive atmospheres
Specifications
Brand
Rated Voltage
- 300 Vac
- 600 Vac
Maximum Maintenance Temperature
- 500° C
- 932° F
Maximum Watt Density
- Up to 262 W/m
Minimum Bend Radius
- 6X Cable O.D.
