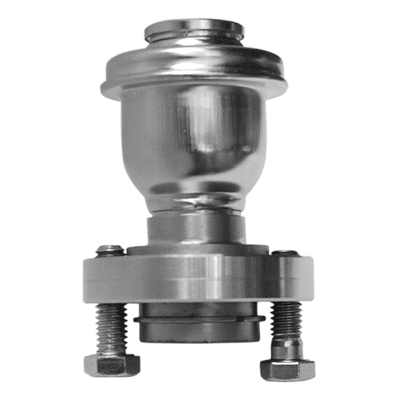

UT450 Thermostatic Steam Trap Module
Brand: Watson McDaniel
The UT450 Thermostatic Steam Trap Module can be used anywhere conventional thermostatic steam traps are used. Used for drip, tracing and light process applications. Trap module mounts to any 2-bolt Quick-Change Universal Connector.
Features- Trap module can be easily removed and replaced in minutes without having to disconnect any piping
- Trap modules can be used with most manufacturers 2-bolt universal connector
- All stainless steel construction with hardened seat
Specifications
Brand
Enclosure, Body Material
- AISI 420 Stainless Steel
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 3/4” NPT Female
Welded Connection
- 1” Socket Weld End Female
- 1/2” Socket Weld End Female
- 3/4” Socket Weld End Female
