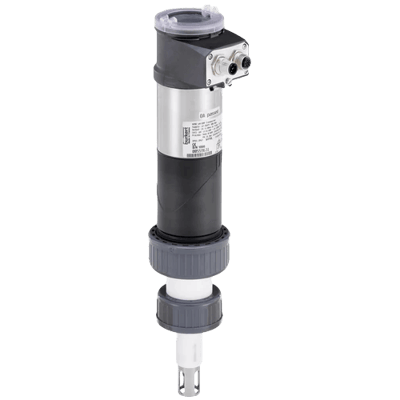

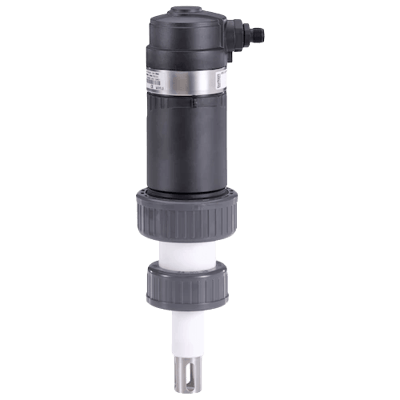

8202 pH or ORP Meter

Brand: Burkert Fluid Control Systems
Does not ship to United States

The Type 8202 is a compact measuring device designed for the measurement of:
  • The pH in clean liquids or liquids containing solids, sulphides or proteins
  • The oxidation-reduction potential (ORP) in clean liquids or liquids containing solids, sulphides or proteins which may present low conductivity
The meter consists of a replaceable 120 mm standard PG13.5 pH or ORP probe Type 8203 with S8 Connector, screwed in a probe holder with integrated Pt1000 temperature sensor.

This ensemble is plugged-in and screwed with a nut to an enclosure with cover containing the electronic module and a removable display. Thus the Burkert meter facilitates short installation and maintenance effort.
Features
  • Integral compact measurement device for direct connection to control level (PLC)
  • Usage of 120 mm standard PG13.5 pH/ORP-probes with S8 connector
  • Simulation of process value and diagnostic function

Specifications

Ambient Temperature Range

  • Operating & Storage without Probe: -10° to 60° C (14° to 140° F)

Approvals & Certifications

  • CE
  • EU Directives
  • FDA
  • UL (C,US): UL 61010-1 + CAN/CSA C22.2 No.61010-1

BSP Connection

  • G 1-1/2” Male

Circuit Protection

  • Short Circuit: Protected for Transistor Outputs

Compensated Temperature

  • Automatic (Integrated Pt1000) - Reference Temperature 25° C (77° F)

Consumption

  • Current (3 Outputs Meter [2-Wire]): ≤ 25 mA at 14 Vdc without Transistor Loads, with Current Loop
  • Current (4 Outputs Meter [3-Wire]): ≤ 5 mA at 12 Vdc without Transistor Loads, without Current Loop
  • Current: ≤ 1 A with Transistor Loads

Cover Material

  • Polycarbonate (PC)

Current

  • 4-20 mA

Diameter

  • Pipe: 0.9 to 4.3” (25 to 110 mm)

Electrical Connectors

  • 3 Outputs Meter (2-Wire): 1 x 5-Pin M12 Male Fixed Connector
  • 4 Outputs Meter (3-Wire): 1 x 5-Pin M12 Male & 1 x 5-Pin M12 Female Fixed Connectors
  • PG13.5
  • Shielded Cable

Electrical Protection

  • Voltage Peak: Protected

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401
  • PPS

Environmental Protection

  • IP65
  • IP67

Function

  • Diagnostic

Humidity

  • ≤ 85 % Relative Humidity, Non-Condensing

Loop Impedance

  • 3 Outputs Meter (2-Wire), 4 Outputs Meter (3-Wire): 1,100 ohms at 36 Vdc, Max.
  • 3 Outputs Meter (2-Wire), 4 Outputs Meter (3-Wire): 610 ohms at 24 Vdc, Max.
  • 3 Outputs Meter (2-Wire): 180 ohms at 14 Vdc, Max.
  • 4 Outputs Meter (3-Wire): 100 ohms at 12 Vdc, Max.

Materials of Construction

  • Display: Polycarbonate (PC)
  • Fixed Connector Mounting Plate: 316L Stainless Steel, 1.4401
  • Fixed Connector: Brass Nickel-Plated
  • Navigation Key: PBT

Measuring Error

  • ORP Measurement (Measurement Deviation): ± 3 mV
  • pH Measurement (Measurement Deviation): ± 0.02 pH
  • pH Measurement (Measurement Deviation): 0.5 mV
  • Temperature Measurement (Measurement Deviation): ± 1° C (1.8° F)

Measuring Range

  • ORP Measurement: -2,000 to 2,000 mV
  • pH Measurement: -2 to 16 pH
  • pH Measurement: -580 to 580 mV

Mounting Position

  • Vertical Position with an Angle of ± 75°, Max.

Nut & Bolt Material

  • Nut: PVC
  • Nut: PVDF

Output

  • 4-20 mA
  • Transistor (NPN): 0.2-36 Vdc

Output Format

  • Open Collector (700 mA & 0.5 mA - Max.

Power Supply

  • 3 Outputs Meter (2-Wire): 14-36 Vdc, Filtered & Regulated
  • 4 Outputs Meter (3-Wire): 12-36 Vdc, Filtered & Regulated

Pressure Range

  • psi: 0 to 232 (kPa: 0 to 1,600, bar: 0 to 16)

Process Temperature

  • With PVC Nut Connection: 0° to 50° C (32° to 122° F)
  • With PVDF Nut Connection: -20° to 130° C (-4° to 266° F)

Resolution

  • ORP Measurement: 1 mV
  • pH Measurement: 0.001 pH
  • pH Measurement: 0.1 mV
  • Temperature Measurement: 0.1° C (0.18° F)

Response Time

  • 10 to 90 %: 150 milliseconds

Reverse Polarity Protection

  • Protected Against Reverse Polarity

RTD Type

  • Pt1000

Screw Material

  • Stainless Steel

Seat / Seal Material

  • Seal: EPDM
  • Seal: Silicone

Switch Type

  • Transistor (NPN & PNP)

Temperature Range

  • Minimal Temperature Scale: 10° C (18° F) [i.e 10° to 20° C (50° to 68° F) Corresponding to 4-20 mA]
  • Temperature Measurement (Measuring Range): -20° to 130° C (-4° to 266° F)

Wetted Materials

  • Probe Holder: 316Ti Stainless Steel, 1.4542
  • Probe Holder: PVDF
