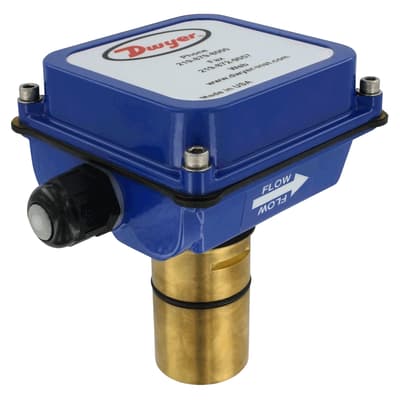

Series BAT Blind Analog Transmitter
Brand: Dwyer Instruments, LLC
The Series BAT Blind Analog Transmitter is a 4 to 20 mA transmitter for use with the Series EFS2, IEFS, PDWS, PFT and FLMG.
Features- Easy to set up and can be either wall or meter mounted
- Takes a pulse frequency output from the compatible flow meters and converts it into a continuous 4 to 20 mA Analog output signal
- The frequency for the flowmeter output signal can be adjusted using four rotary switches on the back of the transmitter and a microcontroller automatically scales all other values accordingly
- The microcontroller averages inputs for more stable reading outputs and is adjustable from 2 to 16 seconds
- Loop Powered, 2 Wire Connection
- High environmental protection with semi-flexible urethane potted electrical components
Specifications
Electrical Connectors
- Terminal Block
Enclosure, Body Material
- Die Cast Aluminum, Powder-Coated
Environmental Protection
- IP66
- NEMA 4X
Frequency
- 10 Hz at 20 mA
Loop Resistance
- 0 to 1300 ohms, Max.
Mounting
- Meter Mounting
- Wall Mounted
Output
- 4-20 mA
Power Requirement
- 24-36 Vdc
- 4-20 mA
Response Time
- 2 to 60 seconds, 90 % of Full Scale (Depends on Input Averaging)
Temperature Range
- 0° to 55° C (32° to 130° F)
- Telemetry Applications
- Data Logging
- Distributed Control Systems
- Chart Recording
