36T Auto-Mizer Automated Ball Valve
Brand: Worcester-ControlsThe Worcester Auto-Mizer (Series 36T) is a unique combination of a quarter turn ball valve, an electric actuator and a solid state timing device which provides a self-contained answer to the problems associated with manually draining, sampling, purging and flushing piping systems and equipment.

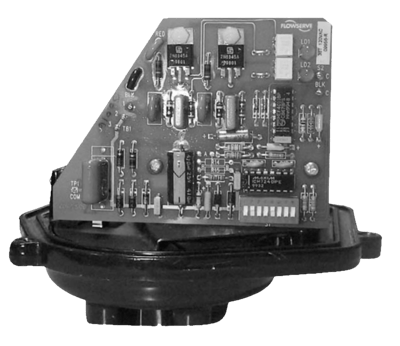

Designed with manpower reduction and energy conservation in mind, the Auto-Mizer will automatically open and close a valve for various time periods that are field-selectable, by simply positioning switches on the timer circuit board.
Specifications
Brand
Ball Material
- 316 Stainless Steel
- Brass
- Stainless Steel
Current
- 1.7 A (120 Vac)
- 2.9 A (120 Vac)
Duty Cycle
- 20 % at 21° C (70° F)
Enclosure Finish
- Epoxy Coated Aluminum
Enclosure, Body Material
- 316 Stainless Steel
- Brass
- Carbon Steel
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4
NPT Connection
- 1/2” NPT
Operation
- Counter-Clockwise at Valve Stem
- Uni-Directional
Pipe Connection
- Screwed: 1” Pipe (DN 25)
- Screwed: 1/2” Pipe (DN 15)
- Screwed: 1/4” Pipe (DN 8)
- Screwed: 1-1/2” Pipe (DN 40)
- Screwed: 1-1/4” Pipe (DN 32)
- Screwed: 2” Pipe (DN 50)
- Screwed: 3/4” Pipe (DN 20)
- Screwed: 3/8” Pipe (DN 10)
Seat / Seal Material
- Fluoropolymer
- Polyfill
- TFE Coated 'S' Gasket
Stem Material
- Brass
- Stainless Steel
Supply Voltage
- Nominal: 120 Vac
Switch Type
- Programmable Microswitches
Temperature Range
- -17.7° to 65.5° C (0° to 150° F) - Max.
Torque
- 150 to 550 In/Lbs
Tube Connection
- 1” Sweat
- 1/2” Sweat
- 1/4” Sweat
- 1-1/2” Sweat
- 1-1/4” Sweat
- 2” Sweat
- 3/4” Sweat
- 3/8” Sweat
Valve Size
- 1/4 to 2” (6.35 to 50.8 mm)
Welded Connection
- 1” Socket Weld End
- 1/2” Socket Weld End
- 1/4” Socket Weld End
- 1-1/2” Socket Weld End
- 1-1/4” Socket Weld End
- 2” Socket Weld End
- 3/4” Socket Weld End
- 3/8” Socket Weld End
- Air Drying Equipment
- Compressor Installations
- Condensate Draining
- Sampling Systems
- Tank Draining
