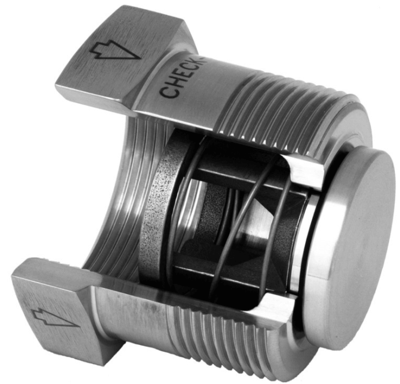

BU/BR Bushing Valve

Brand: Check-All Valve Manufacturing Company
Request Information
Favorite

The Bushing (BU, BR) valve is a check valve with a standard bushing housing.

The valve is adaptable to many types of service applications. It has very little restriction and produces a low pressure drop. It can be used quite effectively in systems where flow and pressure drop are critical by the use of a reducer coupling.

The BU valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings. The bushing thread sizes are designated by two sets of numbers; the first being the male thread, the second the female thread. NPT threads are per ASME B1.20.1. Also available with ISO 7 "R" (R male x Rp female) threads (BR).

Specifications

Brand

Applications

  • Service Applications

Approvals & Certifications

  • CE
  • PED 97/23/EC

Approvals & Certifications

  • ISO 9001

BSP Connection

  • 1” BSPT Male
  • 1/2” BSPT Male
  • 1-1/2” BSPT Male
  • 1-1/4” BSPT Male
  • 2” BSPT Male
  • 2-1/2” BSPT Male
  • 3” BSPT Male
  • 3/4” BSPT Male
  • 1” BSPP Female
  • 1/2” BSPP Female
  • 1-1/2” BSPP Female
  • 1-1/4” BSPP Female
  • 2” BSPP Female
  • 2-1/2” BSPP Female
  • 3/4” BSPP Female
  • 3/8” BSPP Female

Diameter

  • Orifice: 0.34” to 2.02” (8.63 to 51.31 mm)

Enclosure, Body Material

  • 316 Stainless Steel
  • Alloy 20 or Incoloy
  • Alloy 400 or Monel
  • Alloy B
  • Alloy C-276 or Hastelloy
  • Brass
  • Carbon Steel
  • Monel
  • Titanium

Flow Rate

  • 2.6 to 89 Cv

Media

  • Water

NPT Connection

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 1-1/4” NPT Female
  • 1-1/4” NPT Male
  • 2” NPT Female
  • 2” NPT Male
  • 2-1/2” NPT Female
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female

Pipe Size

  • 3/8” to 3” (9.52 to 76.2 mm)

Pressure Range

  • Non-Shock Pressure - psi: 1,500 (kPa: 10,340, bar: 103.4) for O-Ring Seats
  • Non-Shock Pressure - psig: 3,000 (kPa: 20,680, bar: 206.8) at 37.7° C (100° F)

Seat / Seal Material

  • Seat: AFLAS
  • Seat: Buna-N
  • Seat: EPDM
  • Seat: Kalrez
  • Seat: Metal to Metal
  • Seat: Neoprene
  • Seat: PTFE
  • Seat: Viton

Spring Material

  • 316 Stainless Steel
  • AISI 630 Stainless Steel, 17-7 PH
  • Alloy 400 or Monel
  • Alloy C-276 or Hastelloy
  • Alloy X-750 (Inconel)
  • Fluorinated Ethylene Propylene (FEP)
  • Titanium

Tolerance

  • Spring Tolerance: ± 15 %
