Images are representations only.

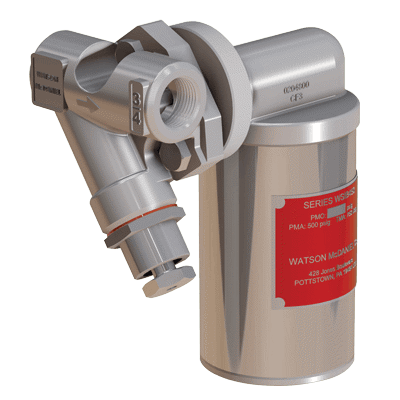

USIB450 Inverted Bucket Steam Trap Module
Brand: Watson McDaniel
The USIB450 inverted bucket steam trap modules must be mounted to a universal connector. They are typically used for drip applications such as draining condensate from steam mains or steam supply lines as well as for steam tracing applications.
USIB450H is the higher capacity model.
Features- Trap module can be easily removed and replaced in minutes without having to disconnect any piping
- Hardened stainless steel valves and seat
- Freeze resistant
- Connectors available with integral strainers and blowdown valves
- 360° swivel design for convenient installation
Specifications
Brand
Enclosure, Body Material
- Stainless Steel GR CF3
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 3/4” NPT Female
Welded Connection
- 1” Socket Weld End Female
- 1/2” Socket Weld End Female
- 3/4” Socket Weld End Female
