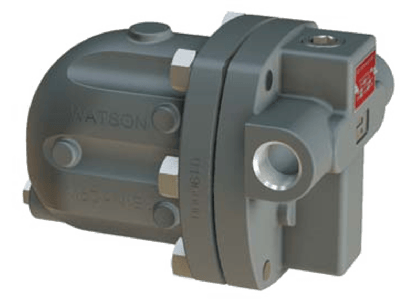

FT600 & FT601 Float & Thermostatic Steam Trap
Brand: Watson McDaniel
FT600 Series steam traps with Cast Steel Body were specifically designed for removing condensate and air from higher pressure steam applications or where steel bodies are specified. They are typically used in chemical plants and petrochemical refineries on re-boilers, heat exchangers, and other critical process applications.
The excellent air-handling capability of float and thermostatic traps make them a better choice than bucket traps for applications requiring quick system start-up. Maximum steam pressure is psig: 450 (kPa: 3,103, bar: 31.03).
Features- Investment cast steel body and cover with class 400 shell rating psig: 670 (kPa: 4,619, bar: 46.19) at 398.8° C (750° F)
- Hardened stainless steel seat and disc for extended service life even at extreme temperatures and pressures
- Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up
- In-line repairability is simplified by having all internals attached to the cover. Studded cover allows for easier removal of body
- Welded stainless steel air vent resists shock from waterhammer. Live orifice air vent is available for superheated applications
- F and T traps discharge condensate immediately as it is formed (no condensate will back up into the system)
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel - FT601
- Carbon Steel - FT600
- Cast Steel, ASTM A-216 - FT600
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
- 3” (DN 80) - 300#
- 3” (DN 80) - 600#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
- 4” (DN 100) - 300#
- 4” (DN 100) - 600#
NPT Connection
- 1” NPT Female
- 1-1/2” NPT Female
- 2” NPT Female
- 3” NPT Female
- 3/4” NPT Female
Welded Connection
- 1” Socket Weld End Female
- 1-1/2” Socket Weld End Female
- 2” Socket Weld End Female
- 3” Socket Weld End Female
- 3/4” Socket Weld End Female
- 4” Socket Weld End Female
- Chemical plants and petrochemical refineries on re-boilers, heat exchangers
- Critical process applications
