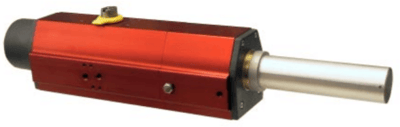

RC200-DOS Pneumatic Actuator
Brand: Remote Control, IncSpecifications
- With spring return for guaranteed safety to closed position
- Adjustable dosing position from open to closed
- Exact filling of products over a given scale
- Very easy to control the operating cycle with two 3/2-way pilot valves
- Connection according to DIN 3337/ISO 5211
- For 90° valves up to 660 Nm closing torque at 6 bar
Specifications
Brand
Actuator Type
- Spring Return
Air Supply
- psi: 87.02 (MPa: 0.55, bar: 6)
BSP Connection
- 3 x R 1/4” - RC250-270
- 3 x R 1/8” - RC210-230
Flange Size - F05
- F05 - ISO 5211
Flange Size - F10 (G0)
- F10 (G0) - ISO 5211
Flange Size - F12
- F12 - ISO 5211
Flange Size - F16 (G3)
- F16 (G3) - ISO 5211
Torque
- 0 to 660 Nm
