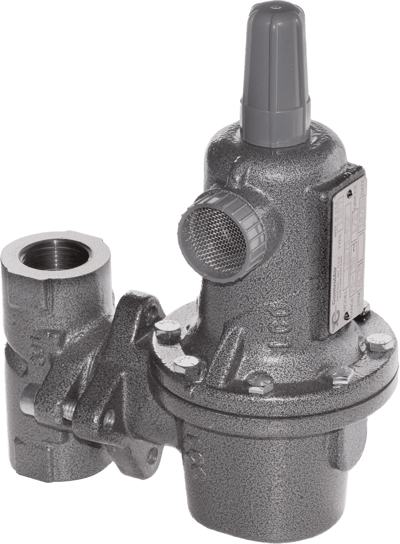

Type 1227 High Flow Gas Pressure Regulator
Brand: ControlAirThe Type 1227 Pressure Regulator is a pressure-reducing, direct-operated regulator suitable for use with compressed air, natural gas, or an assortment of other inert gases.
The Type 1227 is available with output ranges that span from 5 psi up to 150 psi and can be ordered with a variety of orifice sizes and materials providing application flexibility in the oil and gas industries.
Features- Wide Range of Orifice Sizes for Different Flow Capacities
- 1" or 2" Body Size
- Guarded Against Unwanted Set Point Adjustment with Tamper-proof Cap
- Monitoring Option: M Provides Downstream Feedback Control Line
- Trim can be Replaced without Disconnecting Regulator from the System
- Can be Re-arranged into Multiple Orientations for Difficult Installations with Limited Maneuverability
- Superior Sensitivity
- NACE MR0175 Construction Available
- Assembled and Tested in the USA
Specifications
Brand
Version
- Standard
- NACE
Port Size
- 1”
- 2”
Spring Range
- 5-20 psig / 0.3-1.4 bar
- 15-40 psi / 1-2.8 bar
- 35-80 psi / 2.4 bar
- 10-95 psi / 0.7-6.4 bar
- 70-150 psi / 4.8-10.3 bar
Orifice Size
- 3/32”
- 1/8”
- 3/16”
- 1/4”
- 3/8”
- 1/2”
Elastomers/Valve Disk
- Nylon Valve Disk
- Nitrile Elastomers
- Fluorocarbon Valve Disk
Construction
- Stainless Trim
- Monitoring-Downstream Feedback Control Line
