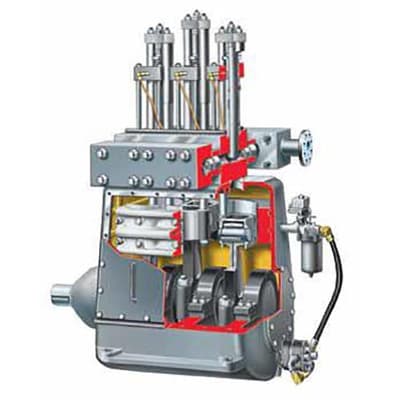

Flowserve Vertical Reciprocating Pump, V Pump
Images are representations only.

V Pump Vertical Reciprocating Pump

Brand: Flowserve Corporation
Request Information
Favorite

The V pumps include vertical triplex, quintuplex, septuplex, and nonoplex positive displacement reciprocating pumps with very high efficiency and are offered in a wide range of hydraulic, mechanical, and material options.
Features
  • Sectionalised Liquid Ends Suitable For Heavy Duty Oil & Gas Applications.
  • Self-Aligning Plungers Ensure Proper Concentricity Within Stuffing Boxes.
  • Many Valve Styles To Suit All Liquid Types From Clean Liquids To Hard Slurries.
  • Stuffing Boxes Outboard Of Cylinder Allowing For More Complex Sealing And Piping Arrangements.
  • Stuffing Boxes Individually Fastened To Liquid Cylinder For Ease Of Maintenance.
  • Totally Enclosed Power Frame Is Dust And Oil Tight Eliminating Atmospheric Contamination.
  • Cylindrical Crossheads And Guides Maximize The Load Bearing Area And Reduce Wear, Keeping Replacement Costs To A Minimum.
  • Various Bearing Lubrication Systems From Splash To Full Pressure.

Specifications

Brand

Configurations

  • Aldrich Vertical Reciprocating Pumps - V
  • IDP Vertical Reciprocating Pumps - V

High Liquid Temperature Design

  • Individual Cylinders & Special Manifold Fastening Arrangement to Cope with Thermal Expansion Effects on Plunger Centre Distance

High Suction Pressure Design

  • Special Crosshead Pin Bearings & Lubrication System to Cope with Non-unloading of that Bearing

Operating Parameters

  • Flows to 1140 m³/hour (5020 gpm)
  • Pressures to 621 bar (9000 psi)
  • Temperatures from -40° C (-40° F) to 288° C (550° F)

Size Range

  • From 76.2 mm (3.00”) to 228.6 mm (9.00”) Stroke, with 12.7 mm (0.50”) to 228.6 mm (9.00”) Diameter Plungers, with Power Ratings of 56 KW to 3470 KW.

Slurry Design

  • Special Liquid End Arrangement for Constant Velocity Flow, Stuffing Box Flushing, & Slurry Valves to Cope with Solids in the Liquid

Standard Design

  • Sectionalised Liquid End with Multi-Cylinder or Individual Cylinder Arrangement & Separate Manifolds, Clean Liquid Valves, & Full Pressure Bearing Lubrication
