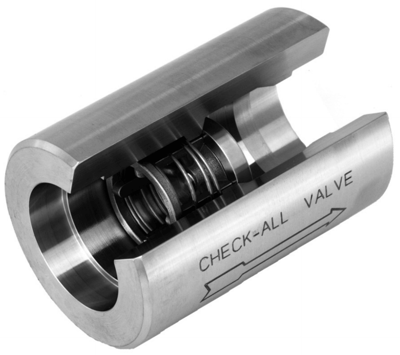

US Universal Socket Weld Check Valve
Brand: Check-All Valve Manufacturing CompanyThe Universal Socket Weld (US) check valve is a one piece body machined from bar stock with socket weld ends and is designed for a minimum pressure drop.
It carries rugged, dependable Check-All trim and there are a wide variety of seat materials and cracking pressures to choose from. The socket ends are machined to ASME/ANSI B16.11 dimensions. The US valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.
Specifications
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- CE
- PED 97/23/EC
Diameter
- Orifice Size: 0.348” to 2.56” (8.63 to 65.02 mm)
Enclosure, Body Material
- 316 Stainless Steel
- 316L Stainless Steel
- Alloy 20 or Incoloy
- Alloy 400 or Monel
- Alloy B
- Alloy C-276 or Hastelloy
- Carbon Steel
Flow Rate
- 1.9 to 140 Cv
Media
- Water
Pipe Size
- 3/8” to 4” (9.52 to 101.6 mm)
Pressure Range
- Non-Shock Pressure-Temperature Rating - psig: 3,000 to 4,000 (kPa: 20,680 to 34,470, bar: 206.8 to 344.7) at 37.7° C (100° F)
Seat / Seal Material
- Seat: AFLAS
- Seat: Buna-N
- Seat: EPDM
- Seat: Kalrez
- Seat: Metal to Metal
- Seat: Neoprene
- Seat: PTFE
- Seat: Viton
Spring Material
- 316 Stainless Steel
- AISI 631 Stainless Steel, 17-7 PH
- Alloy 400 or Monel
- Alloy B
- Alloy C-276 or Hastelloy
- Alloy X-750 (Inconel)
- Fluorinated Ethylene Propylene (FEP)
- Titanium
Tolerance
- Spring Tolerance: ± 15 %
Welded Connection
- 1” Socket Weld End
- 1/2” Socket Weld End
- 1-1/2” Socket Weld End
- 1-1/4” Socket Weld End
- 2” Socket Weld End
- 2-1/2” Socket Weld End
- 3” Socket Weld End
- 3/4” Socket Weld End
- 3/8” Socket Weld End
- 4” Socket Weld End
