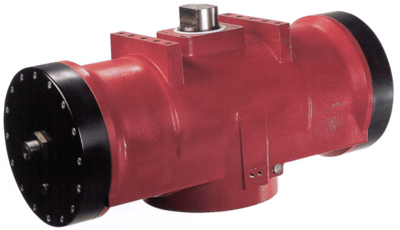

RCG90-100 Pneumatic Actuator

Brand: Remote Control, Inc
Request Information
Favorite

Specifications
  • Strong, compact actuators for large valves and high torques
  • Epoxy coated ductile iron in cylinder, end plates and spring housing
  • Inside of cylinder Teflon lined for low friction and high corrosion protection
  • Connection according to DIN 3337/ISO 5211 to valve
  • Connection according to VDI/VDE 3845 to solenoid valve
  • Prepared for quick operation

Specifications

Brand

Air Supply

  • Double-Acting Actuator - psi: 40 to 145 (kPa: 280 to 1,000, bar: 2.8 to 10)
  • Spring Return Actuator - psi: 40 to 100 (kPa: 280 to 700, bar: 2.8 to 7)

Bearing Material

  • POM (Polyoxymethylene) (Delrin)
  • Tin Bronze

BSP Connection

  • 1/4” BSP

Electrical Connectors

  • 1/2” BSP
  • 3/4” BSP

Enclosure, Body Material

  • Epoxy Coated Ductile Iron

Flange Material

  • Connection Flange: Epoxy Painted Steel

Hand Wheel Material

  • Handwheel with Hub: Epoxy Painted Steel

Materials of Construction

  • Bevel Drive 4: 1 - Epoxy Painted Cast Iron
  • Circlips: Dacrolite-treated Spring Steel
  • Cylinder: Epoxy Coated Ductile Iron
  • End Plates, Protective Tube (Epoxy Coated), Fastening Hook (Zincified): Steel
  • Fastening: Zinc-Plated Carbon Steel
  • Key: Key Steel
  • Scotch Yoke: Forged Steel Alloyed
  • Thrust Washers, Fastening: Stainless Steel
  • Thrust Washers: POM (Polyoxymethylene) (Delrin)
  • Tube, Transparent: Acrylic Plastic

Mounting

  • Top Side Mounting (DIN 3337 / ISO 5211)
  • VDI/VDE 3845

Nut & Bolt Material

  • Stem Nut for RCG-DA & RCG-SR (Right & Left Hand Thread): Aluminum Bronze

O-Ring Material

  • Nitrile

Override

  • Manual Override

Piston Material

  • Aluminum

Ring Material

  • Support Ring: POM (Polyoxymethylene) (Delrin)
  • Support Ring: Tin Bronze

Screw Material

  • Adjustment Screws, Set Screw: Stainless Steel
  • Adjustment Screws: Zinc-Plated Carbon Steel
  • Retaining Screw, Set Screw: Steel

Seat / Seal Material

  • Cuff Sealing: Zincified & Yellow Chromated Steel
  • Tredo-Sealing: Aluminum
  • Tredo-Sealing: Nitrile

Shaft Material

  • Stainless Steel
  • Zinc & Yellow Chromated Carbon Steel

Spring Material

  • Painted Spring Steel
  • Spring Fastener: Stainless Steel
  • Spring Steering: Painted Ductile Iron

Stem Material

  • Stem for RCG-DA & RCG-SR (Right & Left Hand Thread): Steel
