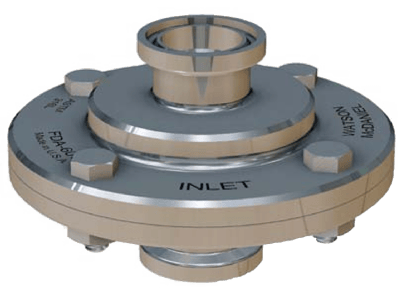

FDA600 Thermostatic Clean Steam Trap
Brand: Watson McDanielFDA600 Series thermostatic clean steam traps are used as drip traps on piping runs on clean steam applications and for drainage for CIP/SIP systems and various process vessels.
Features- All wetted parts are 316L stainless steel
- Operates close to saturation curve to minimize condensate back-up
- Completely self-draining in the vertical downward flow orientation
Specifications
Brand
Applications
- Drip Applications
- Process Applications
Differential Pressure
- psi: 1 to 110 (kPa: 6.895 to 758.4, bar: 0.068 to 7.584)
Enclosure, Body Material
- AISI 316L Stainless Steel
Materials of Construction
- FDA Grade: FEP
- Thermal Element: AISI 316L Stainless Steel
Mounting Position
- Downwards
- Vertical
NPT Connection
- 1" NPT
- 1/2" NPT
- 3/4" NPT
Nut & Bolt Material
- AISI 316L Stainless Steel
O-Ring Material
- Teflon Coated Silicone
Operating Pressure
- psig: 110 (kPa: 758.4, bar: 7.584) - Max.
Pressure Range
- Allowable Pressure - psig: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10) - Max.
Pressure Type
- Gauge
Temperature Range
- Allowable Temperature: -17.78° to 176.67° C (0° to 350° F) - Max.
Tri-Clamp Connection
- 1" Tri-Clamp
- 1/2" Tri-Clamp
- 3/4" Tri-Clamp
Tube Connection
- 1" Tube
- 1/2" Tube
- 3/4" Tube
Wetted Materials
- 316L Stainless Steel
