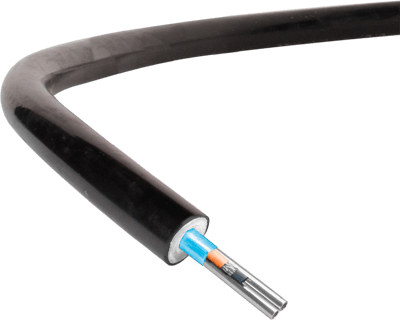

TubeTrace® With HTSX Electrically Heated Tubing Bundles
Brand: Thermon, IncDoes not ship to OH, United States
TubeTrace, with “cut-to-length” HTSX self-regulating heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible.
HTSX withstands temperature exposures of 250° C (482° F).
Self-regulating HTSX heat tracing:
- Varies in response to the surrounding conditions along the entire length of a circuit
- Lower risk of overheating the tube or product
- Installed cost is lower because “cut-to-length” HTSX makes end connections easy with minimal waste
- Self-regulating
- “Cut-to-length”
- Hazardous area approvals
Specifications
Brand
Watt Density
- 10, 20, 30, 39, 49, 66 W/m @ 10° C
- 3, 6, 9, 12, 15, 20 W/ft @ 50° F
Voltage Range
- 208-277 Vac
- 110-120 Vac
Tube Temperature Range
- 5° to 150° C (40° to 302° F)
Max. Exposure Temperature
- Intermittent power-on or off: 250° C (482° F)
- Continuous power-off: 205° C (400° F)
Approvals & Certifications
- FM
- cCSAus
