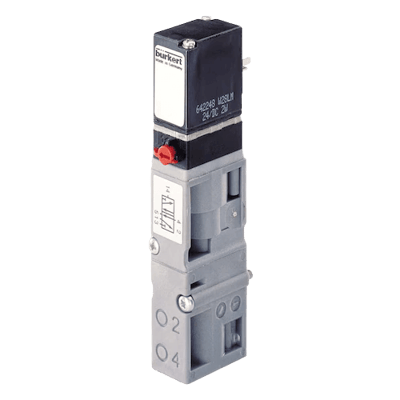

6527 5/2-Way Solenoid Valve
Brand: Burkert Fluid Control SystemsDoes not ship to OH, United States
The solenoid valve Type 6527 consists of a pneumatic valve body fitted with Type 6106 rocker pilot valve. The rocker principle allows switching of high pressures together with low power consumption and fast response times.
The extendable Type 6527 can be used for block modules (tag connectors in front) or for entire valve islands (8640 and 8644 - tag connectors at the block).
Features- Compact design
- Single and manifold mounting
- Low power consumption
- Rocker pilot in DC
- Fast response times
Specifications
Ambient Temperature Range
- -10° to 55° C (14° to 131° F)
Consumption
- Power: 1 W
- Power: 2 W
Duty Cycle
- Continuous Operation (100 %)
Electrical Connectors
- Pneumatic Module: G 1/8"
- Pneumatic Module: Push-In Connection Ø 0.3" (8 mm)
- Tag Connector According to DIN EN 175301-803 (Previously DIN 43650) Form C-Typical 2506
Enclosure, Body Material
- Polyamide (PA)
Environmental Protection
- IP65
Flow Rate
- QNn Value Air: 700 L/minute
Media
- Lubricated Dry Air
- Neutral Gases (10 μm Filter)
- Non-Lubricated Dry Air
Mounting
- With 2 Screws M3 x 30
Mounting Position
- Preferably Solenoid System Upright
Nominal Power
- 1 W
- 2 W
Orifice Size
- 6 mm
Override
- Manual Override
Pressure Range
- psi: 14.5 to 145 (kPa: 100 to 1,000, bar: 1 to 10)
Process Temperature
- -10° to 50° C (14° to 122° F)
Response Time
- Closing: 12 to 17 ms (Measures According to ISO 12238)
- Opening: 20 ms (Measures According to ISO 12238)
Seat / Seal Material
- Seal: NBR
Solenoid Type
- 5/2-Way
Tolerance
- Voltage: ± 10 %
Voltage
- 24 Vdc
