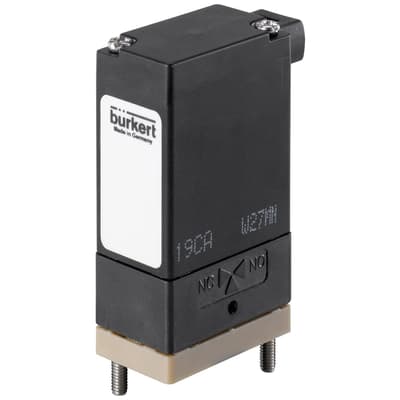

Type 0127 Direct-Acting 2/2 or 3/2-Way Rocker-Solenoid Valve

Brand: Burkert Fluid Control Systems
Does not ship to Virginia, United States

Bürkert’s unique miniature rocker solenoid valve is the pioneer of isolated mini valves suitable for laboratory, medical and analysis technology, that still set the standard! It is a highly reliable minimum volume valve that has low dead volume and is easy to purge. Boasting an inert isolating diaphragm between the actuator and body, it is operated via a rocker that separates the actuator from the fluid.

Heat transfer between the actuator and the fluid is minimized due to the coil not having direct contact with the diaphragm. The valves can be manifold mounted and a simplified common wiring system is available if required. Special dead volume free designs are also obtainable on request.
Features
  • For maximum chemical resistance requirements
  • Compact design with 16 mm width and Cv ratings up to 0.058
  • Proven reliability since 1993
  • Flexible design for custom manifold assemblies
  • High back pressure tightness, excellent cleanability and 100 % duty cycle

Specifications

Material of Construction

  • Fluid Housing: PEEK, PVDF, PPS
  • Seal: FFKM, FKM, EPDM

Operating Voltage

  • 12/24 Vdc, 24 V UC

Power Consumption

  • 3.4 W

Response Time

  • Open: ca. 25 ms (Pressure Rise 0 to 10 %) Closing: ca. 25 ms (Pressure Drop 100 % to 90 %)

Media

  • Neutral and Aggressive Liquids and Gases

Operating Temperature

  • -10° to 55° C

Environmental Protection

  • IP65
  • IP30

Port Connection

  • Bürkert Sub-Base (16 x 27 mm)
  • G 1/8”
  • NPT 1/8”
  • UNF 1/4”-28
  • Tube Connection

Ambient Temperature

  • Maximum 55° C
