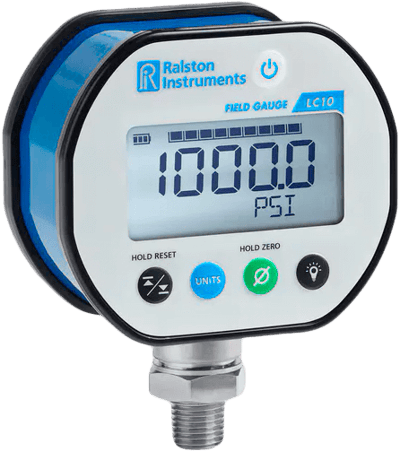

LC10 Digital Pressure Gauge

Brand: Ralston Instruments
Request Information
Favorite

An affordable pressure gauge with high-end features, the new Field Gauge LC10 line of digital pressure gauges was designed with the user in mind.

They are compact, tough, and reliable with customization options to help you simplify your work and get the job done quickly and accurately.
Features
  • Increased visibility - large, easy-to-read display with intuitive controls and bright backlight
  • Exceptional durability - withstands abuse and cracking and is waterproof to 1 meter (IP67)
  • Added customization - easily switch from among 15 standard engineering units with the option to add your own and remove unneeded units
  • Quick, reliable Zero function using a single button
  • Convenient High / Low function that allows the user to see the highest and lowest pressure reached
  • USB connection to connect to calibration management software for live viewing of pressure, customization of engineering units, and calibration
  • ±0.25% full scale accuracy (ASME Grade 3A / ISO Class 0.25)
  • Available in 11 pressure ranges from 5 psi / 35 kPa to 10,000 psi / 70 Mpa, a compound vacuum/pressure gauge from negative to positive 15 psi, and a digital vacuum gauge measuring up to 30 inHg / 760 mbar
  • Made in the USA

View Details

Specifications

Brand

Maximum Pressure

  • 5 to 10,000 psi (34 mbar to 700 bar, 30 kPa to 70 MPa)

Pressure Measurement Uncertainty

  • ± 0.25 % of Full Scale (ASME Grade 3A/ISO Class 0.25)

Measurement Type

  • Gauge Pressure,
  • Gauge Pressure, Gauge Vacuum
  • Gauge Vacuum

Operating Temperature

  • -4° to 122° F (-20° to 50° C)

Material of Construction

  • ABS / Polycarbonate Blend, Powder-Coated Aluminum

Process Connection

  • 1/4” Male NPT

Process Connection Location

  • Bottom Mount

Certifications & Approvals

  • CSA, UL, IEC, EN/ AS
  • Pressure Equipment Directive 2014/68/EU
  • Low Voltage Directive 2014/35/EU
  • Electromagnetic Compatibility Directive 2014/30/EU

Ingress Protection

  • IP67

Relative Humidity

  • 0 % to 90 % (-10 to 35° C), 0 % to 70 % (35 to 50° C)

Wetted Material

  • 316 Stainless Steel

Media

  • Air, Alcohol, Antifreeze, Ethylene Glycol, Hydraulic Oil, Inert Gas, Mineral Oil, Natural Gas, Petroleum-based Oil, Skydrol, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil, Water

Battery

  • AA Alkaline (IEC LR6), 1,500 Hours

Operatig Altitude

  • 10,000 ft (3,050 m)

Protection Class

  • Pollution Degree 2 (UL / IEC 61010-1)

LCD Display

  • 2.4 in / 61 mm Segmented LCD Display

Wrench Size

  • 7/8 in / 23 mm

Weight

  • 12.6 oz. / 355 grams

Dimensions

  • L 1.75 in/45 mm, W 3.4 in/87 mm, H 3.1 in/79 mm (4.1 in/11 cm)

  • Pressure Calibration Testing of Process Gauges
  • Hydrostatic Pressure Leak Testing
  • Pressure Monitoring and Data Logging
