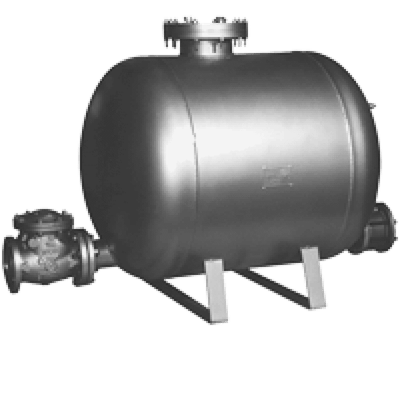

PMPBP Pressure Motive Pump
Brand: Watson McDanielThe PMPBP model non-electric Carbon Steel pressure motive pump is extremely high-capacity for applications requiring large transfer of condensate or other liquids.
This stand-alone pump is capable of operating with a maximum motive pressure of psig: 150 (kPa: 1,034, bar: 10.34) provided by steam, air, nitrogen or other pressurized gases as the motive force.
Features- All stainless steel internals for ultimate corrosion resistance
- Operates using steam, air, nitrogen or other pressurized gas as the motive force
- Non-Electric – can be used in remote locations or NEMA 4, 7, 9 and hazardous areas
Specifications
Brand
Cover Material
- Carbon Steel
Enclosure, Body Material
- Carbon Steel
Environmental Protection
- NEMA 4
- NEMA 7
- NEMA 9
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
Flange Type
- Raised Face (RF)
Gasket Material
- Cover Gasket: Non-Asbestos
Materials of Construction
- Check Valves: Steel
- Inlet, Vent, Check Valves, Other Internal Components: Stainless Steel
- Mechanism Yoke, Ball Float: 304 Stainless Steel
NPT Connection
- 2” NPT Female
- 3/4” NPT Female
Nut & Bolt Material
- Cover Bolts: Steel
Operating Pressure
- psig: 150 (kPa: 1,034, bar: 10.34) - Max.
Operating Temperature
- 185.5° C (366° F) - Max.
Pressure Range
- Allowable Pressure - psig: 0 to 150 (kPa: 0 to 1,034, bar: 0 to 10.34)
Pressure Type
- Gauge
Spring Material
- Stainless Steel
Welded Connection
- 4” Socket Weld End Female
