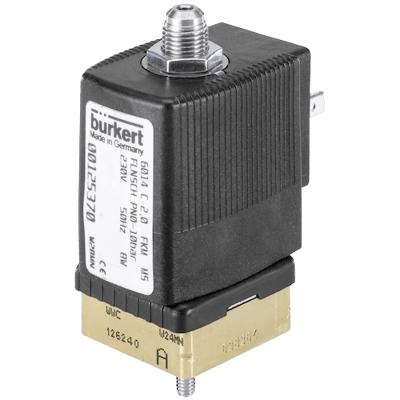

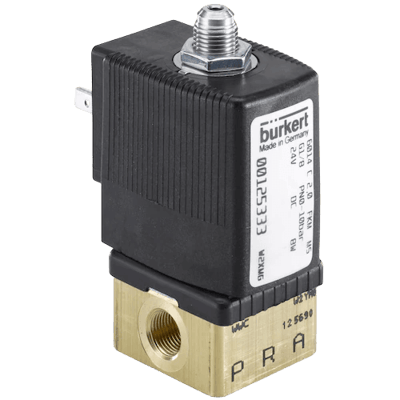

6014 Threaded Direct-Acting 3/2-Way Plunger Valve

Brand: Burkert Fluid Control Systems
Does not ship to Washington, United States

Valve 6014 is a direct-acting plunger valve. The stopper and plunger guiding tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application.

A Burkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold.

The coils are moulded with polyamide or with chemically resistant epoxy. Pulse coils are available for the reduction of electrical power consumption during operation.

Optional manual actuation enables quick commissioning and easy maintenance.

In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.

Specifications

Ambient Temperature Range

  • 55° C (131° F) - Max.

BSP Connection

  • G 1/4” Female
  • G 1/8” Female

Consumption

  • Power (DC Hot/Cold Coil): 8/9 W
  • Power: 17 VA [Hold AC (Hot Coil)]
  • Power: 24 VA (Inrush AC)
  • Power: 8 W [Hold AC (Hot Coil)]

Duty Cycle

  • Single Valve: 100 % Duty Cycle Continuous Rating

Electrical Connectors

  • Cable Plug
  • DIN EN 175301-803 Form A

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • AISI 303 Stainless Steel 1.4305
  • AISI 316 Stainless Steel, 1.4401
  • Brass
  • Polyamide (Sub Base)

Environmental Protection

  • IP65 with Cable Plug
  • IP66
  • NEMA 4X with Cable Plug

Flow Rate

  • 0.07 to 0.16 m³/hour

Insulation

  • Coil Insulation: Class B
  • Insulation Class: Epoxy Class H

Materials of Construction

  • Armature Guide Tube: AISI 305 Stainless Steel, 1.4303
  • Coil: Epoxy (High Temperature Version)
  • Coil: Polyamide
  • Lock Nut, Sub Base: Stainless Steel (Thick Film Passivated Surface) - Brass Version
  • Stopper, Magnetic Core: AISI 430FR Stainless Steel (1.4105)
  • Sub Base: AISI 304 Stainless Steel, 1.4301

Media

  • Compressed Air
  • Hydraulic Oil
  • Natural Gas
  • Neutral Gases & Fluids
  • Technical Vacuum
  • Town Gas
  • Water

Mounting Position

  • Preferably with Actuator Upright

O-Ring Material

  • FKM

Operating Pressure

  • psi: 0 to 232 (kPa: 0 to 1,600, bar: 0 to 16)

Operating Voltages

  • 230 Vac / 50 Hz
  • 24 Vac / 50 Hz
  • 24 Vdc

Orifice Size

  • 0.05” to 0.09” (1.5 to 2.5 mm)

Plug Material

  • Cable: Polyamide

Power

  • Coil: 5-8 W

Process Temperature

  • Epoxy Coil: -10° to 120° C (14° to 248° F)
  • Polyamide Coil: -10° to 100° C (14° to 212° F)

Response Time

  • AC & DC (Closing): 10 to 22 milliseconds
  • AC & DC (Opening): 10 to 20 milliseconds

Ring Material

  • Shading Ring: Copper (Cu) - Brass Version
  • Shading Ring: Silver (Ag) - Stainless Steel Version

Seat / Seal Material

  • Flat Seal: NBR
  • Plunger Seal: FKM
  • Seal: EPDM

Solenoid Type

  • 3/2-Way

Spring Material

  • AISI 301 Stainless Steel 1.4310

Tolerance

  • Voltage: ± 10 %

Viscosity

  • 21 mm²/sec, Max.
