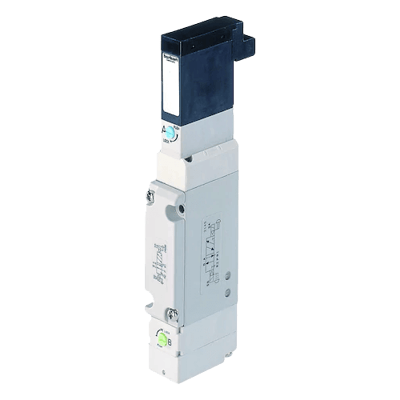

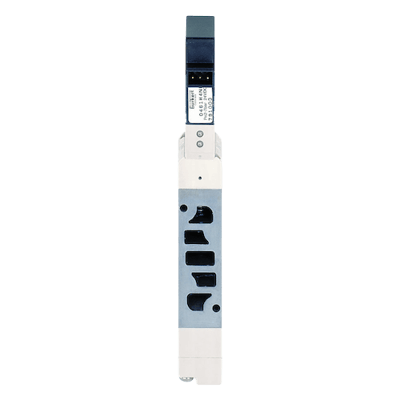

0461 5/2 & 5/3-Way Solenoid Valve

Brand: Burkert Fluid Control Systems
Does not ship to United States

The solenoid valve Type 0461 consists of a servo controlled solenoid valve with a double coil and a pneumatic slide valve.

The principle allows switching of high pressures together with low power consumption and fast response times.

All valves are equipped with manual override as a standard.
Features
  • 0.649" (16.5 mm) width/station
  • Compact design
  • Block mounting
  • Fast response times

Specifications

BSP Connection

  • Service Port 2 (A), 4 (B): G 1/8”
  • Supply Port Connection 1 (P), 3 (R), 5 (S): G 3/8”

Electrical Connectors

  • At the Valve: Rectangular Plug
  • Service Port 2 (A), 4 (B): Push-In Connection Ø 0.3” (8 mm)

Enclosure, Body Material

  • Aluminum

Flow Rate

  • QNn Value Air: 500 L/minute

Media

  • Lubricated Dry Compressed Air
  • Neutral Gases (10 µm Filter)
  • Non-Lubricated Dry Compressed Air

Nominal Power

  • 1 W

NPT Connection

  • Service Port 2 (A), 4 (B): 1/8” NPT
  • Supply Port Connection 1 (P), 3 (R), 5 (S): 3/8” NPT

Orifice Size

  • 6 mm

Override

  • Manual Override

Power Supply

  • 24 Vdc

Pressure Range

  • psi: 36.26 to 101.5 (kPa: 250 to 700, bar: 2.5 to 7)

Response Time

  • Closing: 30 to 50 milliseconds (Measured According to ISO 12238)
  • Opening: 15 to 20 milliseconds (Measured According to ISO 12238)

Seat / Seal Material

  • Seal: NBR

Solenoid Type

  • 5/2-Way
  • 5/3-Way
