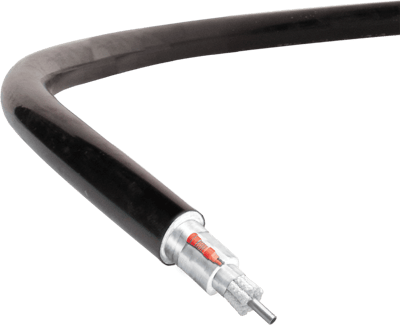

TubeTrace® Type SEI/MEI - HT Electrically Heated Tubing Bundles
Brand: Thermon, IncTubeTrace HT is a pre-engineered electric traced tube bundle for steam sample lines and impulse lines to pressure transmitters.
TubeTrace HT will provide water freeze protection in ambient conditions down to -45°C (-50°F) with 40 kph (25 mph) wind conditions.
HT will withstand continuous steam exposure temperatures up to 399°C (750°F).
In the past, tubing subject to high temperature exposure was heat traced with series resistance mineral insulated (MI) heat trace.
MI heaters are custom made to fit each application, so long lead times are often required.
TubeTrace HT solves this with Thermon parallel resistance HPT heat trace isolated from direct contact with high temperature tubing.
Features- "Touch safe" jackets protect personnel
- "Cut-to-length" for faster installation
- Rated for 399°C (750°F) continuous exposure temperatures
- Designed for ambient sensing control at +5°C (40°F)
Specifications
Brand
Maintain Temperature
- 5° C
- 40° F
Minimum Design Ambient
- -45° C
- -50° F
Voltage Range
- 120 to 240 Vac
- 100-277 Vac
Minimum Installation Temperature
- -40° C
- -40° F
