United Electric Heat Trace RTD Temperature Sensor, Style T1441/T1441X
Images are representations only.

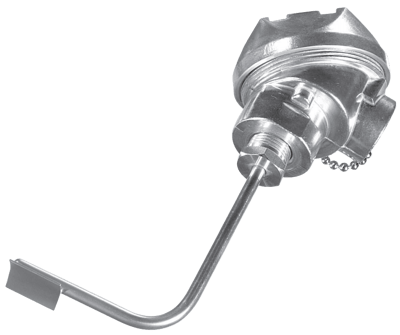

Style T1441/T1441X Heat Trace RTD Temp Sensor

Brand: United Electric Controls Ltd
Request Information
Favorite
Does not ship to OH, United States

Designed for use in any pipe or surface temperature measuring application.
Features
  • Heat transfer pad with excellent temperature response
  • Rugged stainless steel sheaths for excellent mechanical protection
  • Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
  • Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles

View Details

Specifications

Brand

Accuracy

  • ± 0.12 %

Conduit Connection

  • 1/2” NPT

Electrical Connectors

  • Terminal Block

Environmental Protection

  • IP66
  • NEMA 4
  • Terminal Head: Explosion-proof

Length

  • Sheath Length: 4-1/4” (107.9 mm) from Pipe to Fitting Standard

Materials of Construction

  • Aluminum
  • Sheath: Stainless Steel

Mounting

  • Pipe

Operating Temperature - Sensor

  • -18° to 371° C (0° to 700° F)

RTD Type

  • Pt100

Sensor, Probe Connection

  • 3-Wire

Sensor, Probe Type

  • RTD
